Accumulation Conveyor Infographic

Accumulation Conveyor

Accumulation conveyor is typically used in conjunction with other conveyor types in a complete conveyor system. Accumulation conveyor consists of pop-up sensor rollers located in ‘zones' which use a pressurized air system to hold your product in a queue. view entire article

Accumulation Conveyor Guide

Accumulation Conveyor

Accumulation conveyor is typically used in conjunction with other conveyor types in a complete conveyor system. Accumulation conveyor consists of pop-up sensor rollers located in ‘zones' which use a pressurized air system to hold your product in a queue until it receives a signal to release it to the next stage of operations. This can include moving products one at a time onto a weigh station, case sealer, sort system, palletizer, or any other work station.

There are several types of common accumulation conveyor, however two are more common than the others. Zero pressure accumulation conveyor will eliminate package collisions on the conveyor line by leaving gaps between each individual box, while minimum pressure accumulation conveyor will place the individual boxes next to each other with little back pressure.

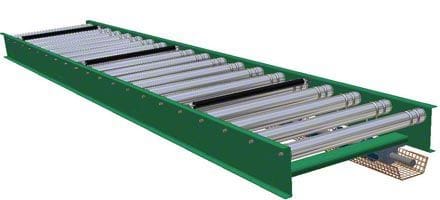

Accumulation Conveyor Cross Section

Accumulation conveyor can be the most vital link in any large conveyor system. Without it, your sortation system, packaging machine, or other machines will quickly become overloaded and will not function properly.

SJF is an authorized nationwide distributor of Omni conveyor. SJF can provide other popular brands at your request. We can provide custom conveyor solutions for clients large and small - nationwide. In fact, the employees in SJF's Genesys division are among the best in the business for providing cutting edge warehouse conveyor handling systems and solutions. Call us today and speak with any of our friendly conveyor solutions specialists. [800-598-5532]

Hytrol Lineshaft Accumulation Conveyor

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

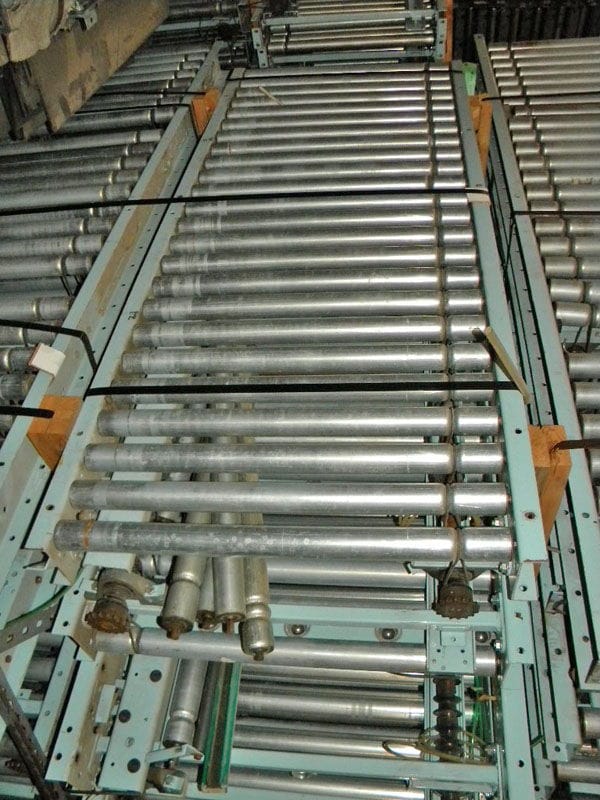

Hytrol Accumulation Conveyor Hytrol Accumulation Conveyor - End View

Hytrol accumulation conveyor - Nice Condition.

  • 30" wide lineshaft
  • 1.9" diameter rollers on 3" centers
  • 24" accumulation zones
  • $55.00 per foot
  • $1,250.00 per drive
  • $30.00 per stand

Please Call [800-598-5532 x 218] or for pricing, availability and lead times.

Pricing & availability subject to change without notice.

Rapistan 1276 High Speed Accumulation

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

Rapistan 1276 Conveyor w/TightPak Rollers

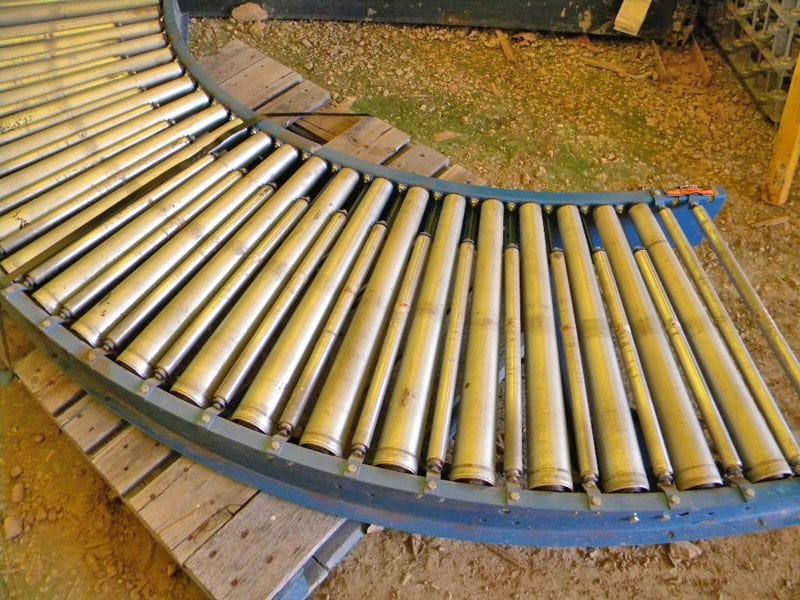

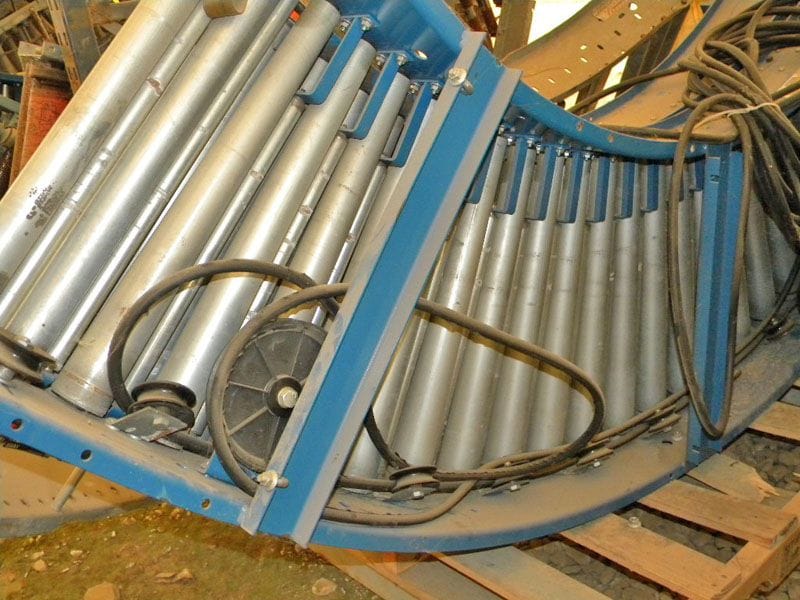

Rapistan 1276 High-Speed Curve Rapistan 1276 High-Speed Curve

This Rapistan 1276 features tightpak rollers for very high speed conveyance. This conveyor is in good condition and has been stored indoors since its purchase.

  • 2200+ ft. available
  • 24" OAW
  • 1.9" high speed rollers on 2" centers
  • 24" zones
  • Drives & Curves also available

This conveyor was originally priced at $120/ft.
Now priced to move at $28.50/ft. "as-is"

Please Call [800-598-5532] or for pricing, availability and lead times.

Pricing & availability subject to change without notice.

Featured: Rapistan 1276 Accumulation

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

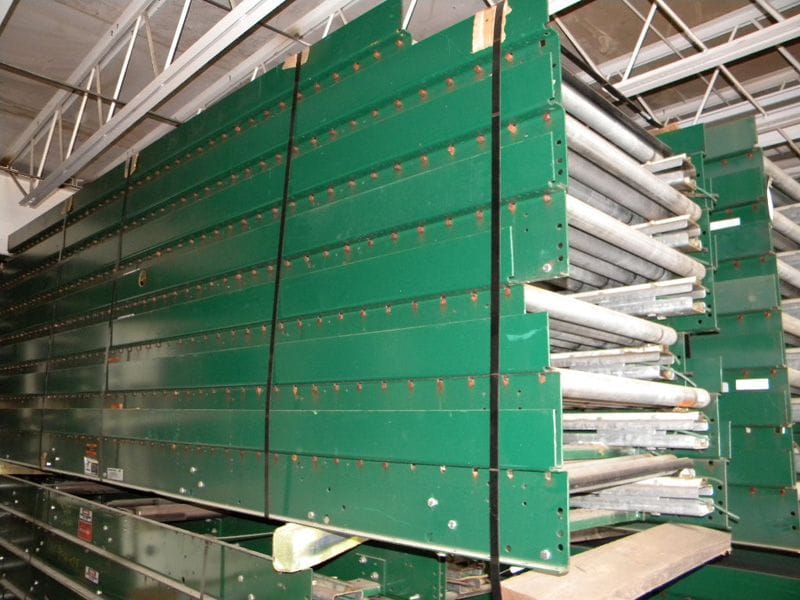

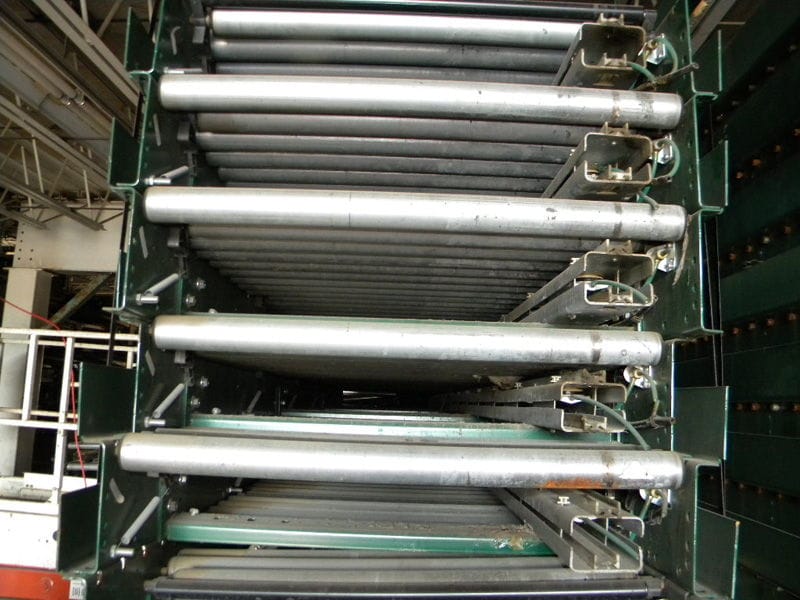

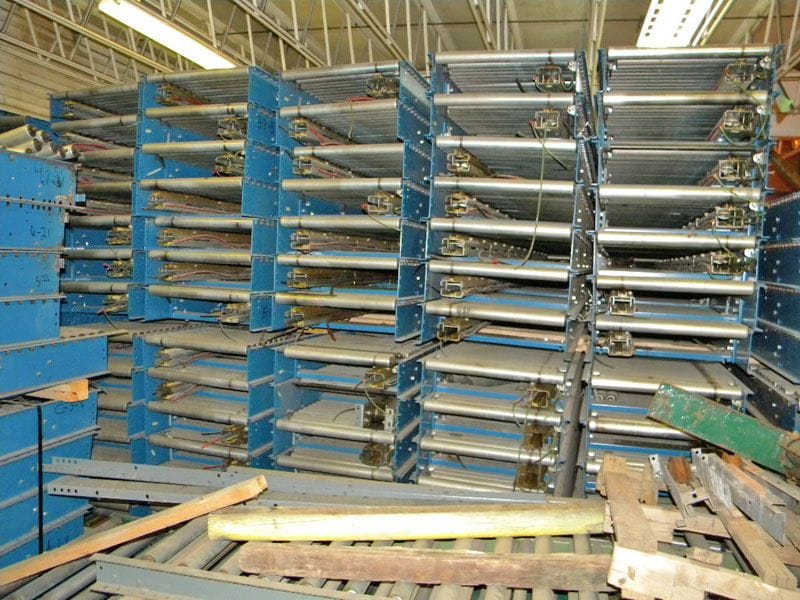

Rapistan 1276 Conveyor Rapistan 1276 Conveyor

This conveyor is in good condition and has been stored indoors since its purchase.

  • 1000+ ft. available
  • 30" OAW
  • 1.9" high speed rollers on 3" centers
  • 24" zones
  • 7 drives
  • Built in guard rails

This conveyor was priced at $35/ft.
Now priced to move at $25/ft. "as-is"
Drives: $950.00/ea
Stands: $30.00/ea

Please Call [800-598-5532] or for pricing, availability and lead times.

Pricing & availability subject to change without notice.

Used Power Conveyor - Accumulation

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

Accumulation Conveyor

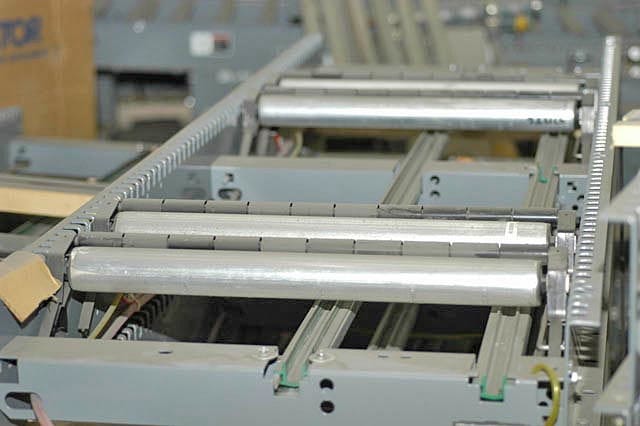

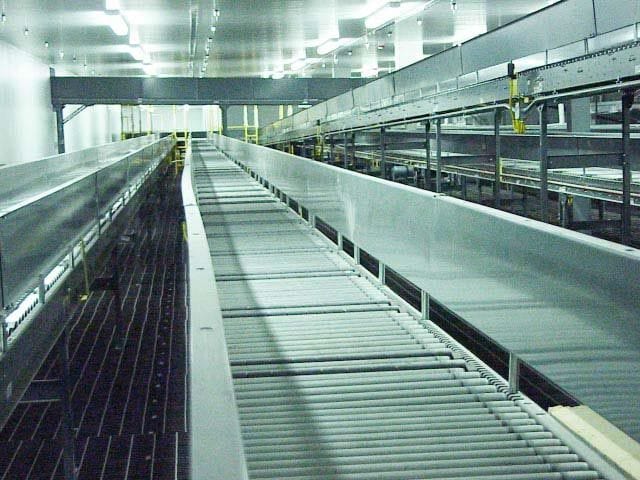

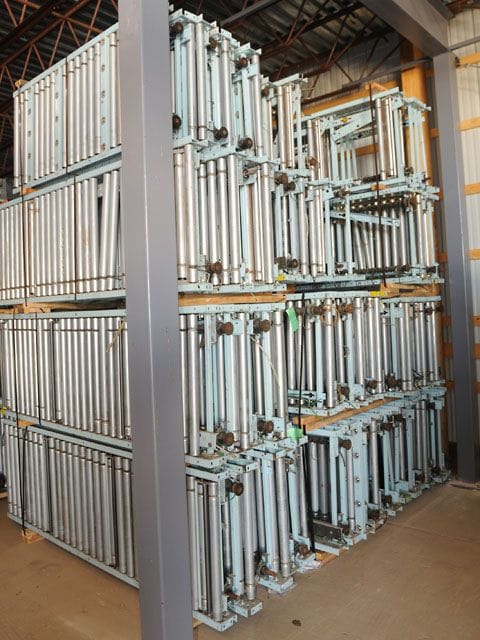

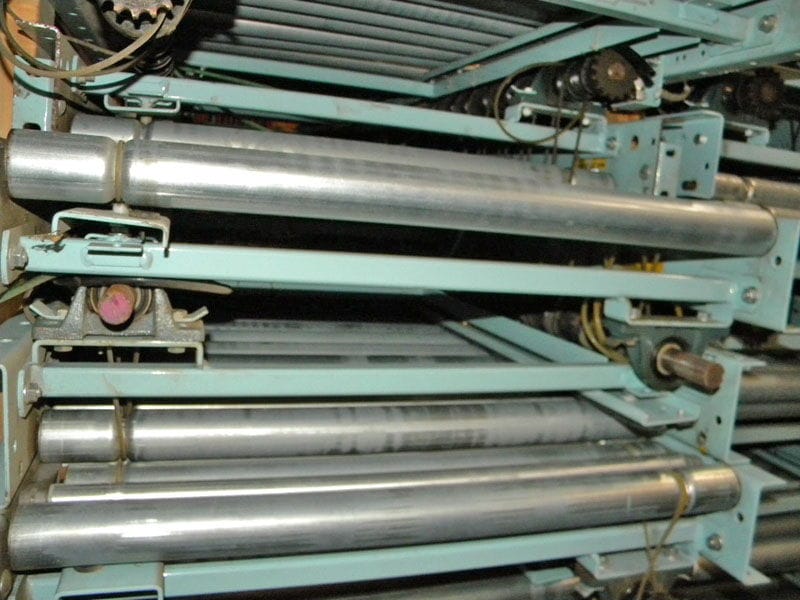

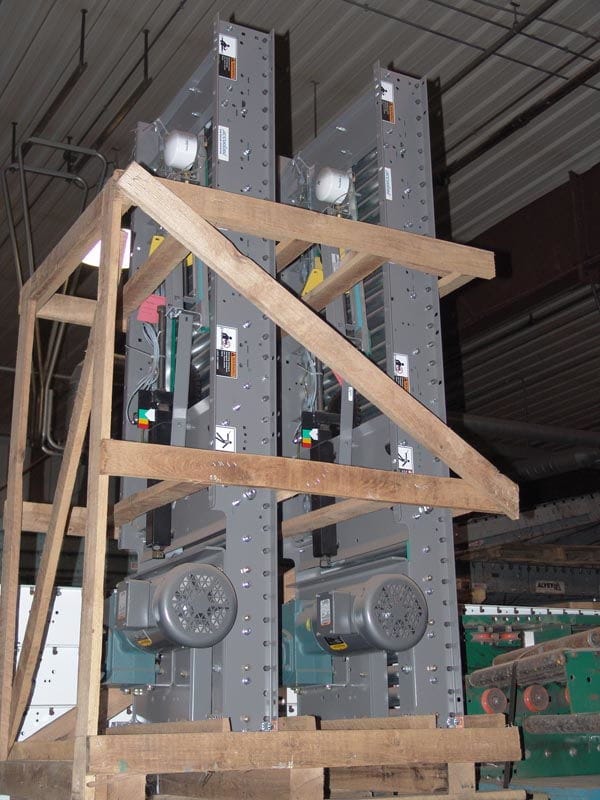

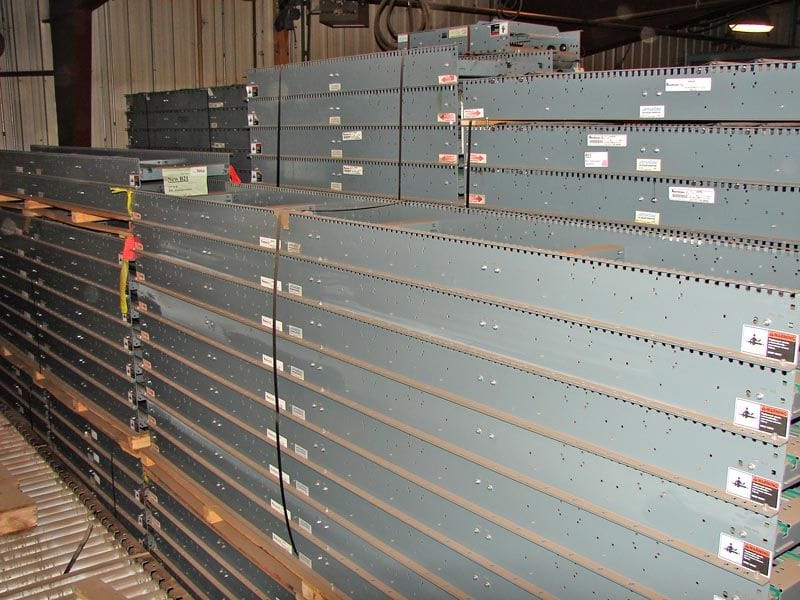

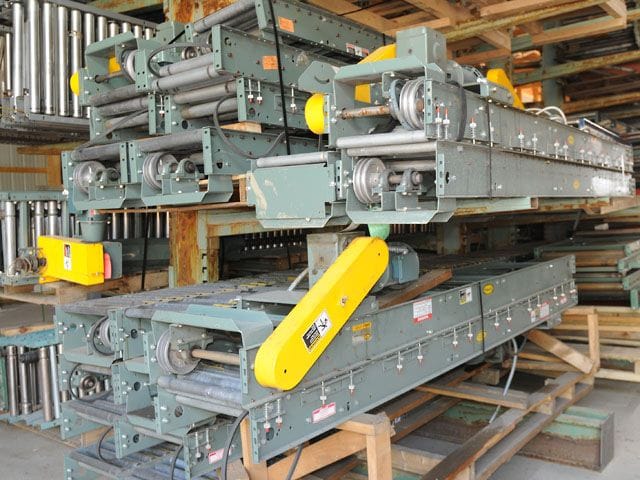

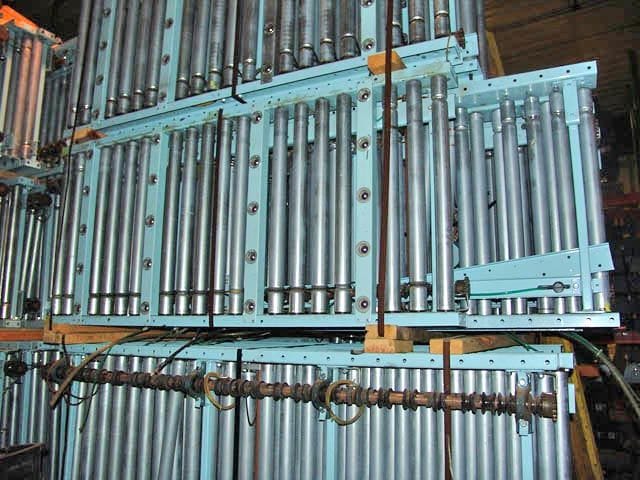

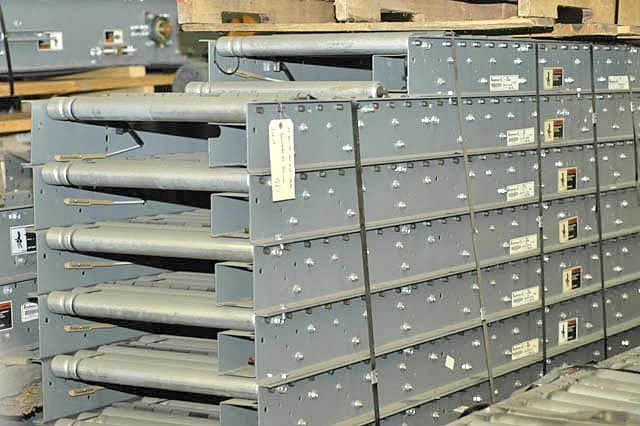

Used Bushman Accumulation Conveyor (Notice the pop-up sensor rollers) Lineshaft Accumulation Conveyor Hytrol Accumulation Conveyor Used Bushman Accumulation Conveyor Bushman Accuglide Accumulation Conveyor Drives Buschman Accumulation Conveyor - Rollers were removed for easier transportation. Hytrol Lineshaft Accumulation Conveyor Buschman AC250 Accumulation Conveyor

This accumulating conveyor was purchased in good condition and is currently in-stock and stored indoors at SJF's main facility in Winsted, MN. We also have several used accumulation conveyor curves, drives, rollers and more available but not always listed. Component items we usually have in stock include: adjustable conveyor stands, used accumulator conveyor controls, used power conveyor drives, guardrails, conveyor junctions, conveyor merges, conveyor spurs, zero pressure accumulation systems, and more.

Conveyor Dimensions Guide

Conveyor Measurements
Description New Cost As Low As
30" Lineshaft Accumulation $90/ft $35/ft
Ermanco Accuroll - 30" OAW $90/ft $35/ft
Rapistan 1276 Accumulation, 24" OAW 1.9" rollers on 2" centers, 24" zones, 22 drives $80/ft $30/ft
Rapistan 1276 Accumulation, 30" OAW 1.9" rollers on 3" centers, 24" zones, 7 drives, built in guard rails $90/ft $35/ft
Hytrol 18" OAW min. pressure accumulation, 1-3/8" rollers on 3" centers - with drives $75/ft $25/ft
Alvey Pallet Accumulation 56" OAW Padded Chain Drive 2-1/2" on 3" c/c Photo Eye Controlled 5' Zones $241.00/ft $100/ft
Automotion Belt Drive Live Roller, 30¼" W, Inter, 3' Center, 1.9' dia. roller, 6 frame, Accum., 12" Zones, 10-0 call $35.00/ft
Automotion Belt Driven, 24¼" W, Live Roller, Inter, 3" Center, 1.9" dia. roller, 6" Frame, Accum., 24"Zone, 10-0 call $35.00/ft
Buschman, 23.5" W, AC250, 24" zones, 1.9-3" Centers, 5" frame call $35.00/ft
Buschman, 24.5" W, Accuglide Transportation $76.00/ft $25.00/ft
Buschman, 24.5" W, Accuglide, 1.3-3"Centers pop out rollers, 24" zones, single mech., sensors, 6.25" frame call $35.00/ft
Bushman Accuglide Accumulation & Transportation Drives 24-1/2"OAW, 150 FPM $3750.00 ea. $2,800 ea.
Description New Cost As Low As
Bushman Accuglide Pallet Accumulation 54" OAW 2-1/2" on 3" c/c Photo Eye Control 5' Zones $241.00/ft $100/ft

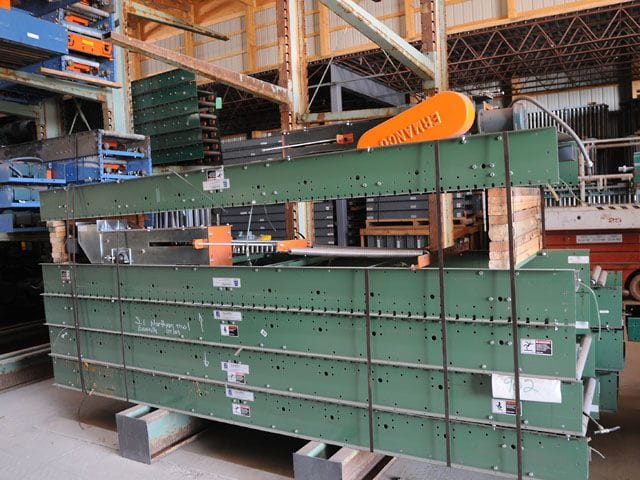

Ermanco, 18.5"W, Lineshaft, 24" zones, 1.9-3' Centers, 4.5' frame, 2 sensor rollers, and 3 air balls transfer rails per 7'-6'bed section call $35.00/ft
Ermanco, 18.5"W, Photo eye Lineshaft acc, 27" zones, 1.9-3" Centers, 4.5' frame, missing photo eyes call $35.00/ft
Ermanco, 24.5"W, Lineshaft acc. drive. 27"zones, 1.9-3" Centers, 4.5" frame, drives call $750.00 ea.
Ermanco, 24.5"W, Lineshaft acc., 27" zones, 1.9"-3" Centers, 4.5" frame, intermediate call $35.00/ft
Hytrol belt Driven Live Roller, 26" W, 3" Center, 1.9" dia. roller, 6.5" Frame, Accum, 24" Zone, Total 3 Drives, 6 Tail End, 7 Inter., 10'-0 $200.00/ft $65.00/ft
Hytrol Belt Driven Live Roller, 30 ½" W, 3" Center, 1.9" dia. roller, 9" Frame, Accum., 12" Zone, Total 2 Drives, 2 Tail End, 4 Inter., 10'-0 $250.00/ft $68.00/ft
Hytrol Belt Driven Live Roller, 30" W, Inter, 3" Center, 1.9" dia. roller, 4.5" Frame, Accum, 24" Zones, 10-0 $200.00/ft $60.00/ft
Hytrol Line Shaft drive, 26" W, 3" center, 1.9" dia. roller, 4.5" Frame, 30' Accum., 10'-0 call $35.00/ft
Hytrol Line Shaft, 30" W, inter, 3" center, 1.9" dia. roller, 4.5" Frame, 30' Accum., 7'-6" $130.00/ft $45.00/ft
Hytrol Line Shaft, 30" W, inter, 3" center, 1.9" dia. roller, 4.5" Frame, 30" Accum., 10'-0 $130.00/ft $45.00/ft
Hytrol, 12"W, Lineshaft acc., 24' zones, 1.375"-3" Centers, 10' section with drive Pcs. Assembled call $35.00 ea.
Description New Cost As Low As
Hytrol, 12"W, Lineshaft acc., 24" zones, 1.375"-3" Centers, 4.5" frame, intermediate call $25.00/ft
Hytrol, 18"W, BDLR photo eye acc tails, 24" zones, 1.9-3" Centers pop out rollers. Each, tails call $350.00 ea.
Hytrol, 18"W, BDLR photo eye acc, 24" zones, 1.9-3" Centers pop out rollers, 8" drive belt, intermediates call $35.00/ft
Hytrol, 18"W, BDLR photo eye acc. drives, 24" zones, 1.9"-3" Centers pop out rollers, Each, drives call $350.00 ea.
Mathews, 24"W, 30" zones, 1.9"-3" Centers, 5" frame, has sensor rollers but no other carrier rollers, 3 dead rollers per zone call $25.00/ft
Rapistan, 18.5" W, APC, 24" zones, 1.9-3" Centers, 6.25" frame $125.00/ft $40.00/ft
Rapistan, 24.25" W, 1276, 24" zones, 1.9-3" Centers, 6.25" frame $130.00/ft $40.00/ft
Rapistan, 30.5" W, 1276, 24" zones, single mechanical sensors, 1.9"-3" Centers, 6.5" std. frame $140.00/ft $40.00/ft
Rapistan, 30.5" W, 1276, 24" zones, single mechanical sensors, 1.9-3" Centers, 6.5" frame with 4" integral guardrail $140.00/ft $40.00/ft
Rapistan, 31" W, 1276, 24" zones, double mechanical sensors, 1.9-3" Centers, 6.5" frame, with 4" integral guardrail $140.00/ft $40.00/ft
Rapistan, 36.5" W, 1276, 1.9-3" Centers, 6.25" frame $150.00/ft $45.00/ft
Rapistan 49" OAW, #4415 Pallet Accumulation $241.00/ft $100.00/ft
Unex Accumulation, 18" oaW, 30" Zones call $20.00/ft

Please Call [800.598.5532] or for pricing, availability and lead times on this and other Power Conveyors. If you don't see what you're looking for, our conveyor solutions specialists can often find it.

Pricing & availability subject to change without notice.
