Belt Driven Conveyor

Belt Driven Conveyor Infographic

Belt Driven Conveyor Guide

Belt driven live roller conveyor consists of load rollers, a drive-belt, return rollers and an external motor. The load rollers make up the conveying surface on which product is transported. view entire article

Belt Driven Conveyor Guide

By

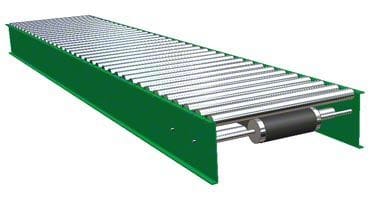

Belt Driven Live Roller Conveyor

Belt driven live roller conveyor (sometimes abbreviated as BDLR) consists of load rollers, a drive-belt, return rollers and an external motor. The load rollers make up the conveying surface on which product is transported. These rollers are moved using a belt which is located directly underneath the load rollers. This provides friction directly on the rollers which creates forward movement of the product. The return rollers are used to keep the belt in place under the conveyor and to maintain tension on the drive belt.

Belt Driven Live Roller Conveyor Cross Section

Belt driven live roller conveyor can be used in accumulation, induction, and merging systems where product sizes and weights tend to vary. It provides limited capabilities for inclined movement or packages of differing shapes.

SJF is an authorized nationwide distributor of Omni conveyor. SJF can provide other popular brands at your request. We can provide custom conveyor solutions for clients large and small - nationwide. In fact, the employees in SJF's Genesys division are among the best in the business for providing cutting edge warehouse conveyor handling systems and solutions. Call us today to discuss your unique conveyor needs. [800-598-5532]

Used Power Conveyor - Belt Driven

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

This belt driven conveyor was purchased in good condition and is currently in-stock and stored indoors at SJF's main facility in Winsted, MN. We also have several used belt driven conveyor curves, drives and more available but not always listed. Component items we usually have in stock include: adjustable conveyor stands, used conveyor belts, conveyor belt cleaners, conveyor belt fasteners, conveyor belt scrapers, guardrails, conveyor belt tracking devices, idlers, conveyor belt systems, and more.

Conveyor Dimensions Guide

Conveyor Measurements
Description Used (As-Is) Refurbished
Starting As Low As
Rapistan 1102 BDLR - 24.25" OAW $36/ft $45/ft
Hytrol BDLR - 30" OAW, 1.9" rollers on 3" centers $40/ft $50/ft
Automation BDLR - 31" OAW & 24" OAW $40/ft $50/ft
Rapistan 1102 BDLR - 24.25" OAW end drives $1150 ea. $1437.50 ea.
Automation BDLR Center Drives 24" & 30" OAW $1200 ea. $1500 ea.
Automotion 30 ¼" W, BDLR, Inter, 3" Center, 1.9" dia. roller, 6" Frame, 10-0 $40/ft $50/ft
Buschman, 24.5"W, V-belt driven live roller, 1.9-3" Center, 10" frame, intermediates $36/ft $45/ft
Buschman, 24.5"W, V-belt driven live roller, drive, 10" frame $1150 ea. $1437.50 ea.
Hytrol 30"W, BDLR, 6" Center, 1.9" dia. roller, 7" Frame, 10'-9 $40/ft $50/ft
Hytrol 30"W, BDLR, Inter, 3" Center $40/ft $50/ft
Hytrol, 18"OAW, V-belt driven live roller, 1.9" rollers, 3" centers $32/ft $40/ft
Hytrol, 18"OAW, V-belt driven live roller drives $1050 ea. $1312.50 ea.
Hytrol, 24"W, V-belt driven live roller, 1.375-1.5" Center, 6.5" galv frame $36/ft $45/ft
Hytrol, 24"W, V-belt driven live roller, drive $1150 ea. $1437.50 ea.
Hytrol, 34"W, BDLR, 1.9-3" Center, 8" drive belt, 6.5" frame $42.50/ft $53/ft
Description Used (As-Is) Refurbished
Starting As Low As
Interlake, 26.5"W, BDLR drives $1200 ea. $1500 ea.
Rapistan 19" W, 1102 BDLR, 3" Center, 1.9' dia. roller, 6" Frame, Inter., 12'-0 $33.50/ft $42/ft
Rapistan 24 ½" W, 1102 BDLR, 3" Center, 1.9" dia. roller, 12'-0 $36/ft $45/ft
Rapistan 24 ½" W, 1102 BDLR, Inter, 3" Center, 1.9" dia. roller, 12'-0 $36/ft $45/ft
Rapistan 24 ½" W, 1102 BDLR, Inter, 4" Center, 1.9" dia. roller $36/ft $45/ft
Rapistan 24 ½" W, 1102 BDLR, Tail End, 4" Center, 1.9" dia. roller, 12'-0 $690 ea. $862.50 ea.
Rapistan, 2 to 1 BDLR Sawtooth merge, 1.9-3" Center, 24" incoming lines, 30.25" main line $900 ea. $1125 ea.
Rapistan, 24.5"W, round belt live roller intermediate, 1.9-3" Center, 6.25" frame $36/ft $45/ft
Rapistan, 24.5"W, round belt live roller tail sections, 24" long, 1.9-3" c/c $240 ea. $300 ea.
Rapistan, 24.5"W, round belt live roller, 1.9-3" Center, 6.25" galv frame, 7'-6" long $36/ft $45/ft
Rapistan, 3 to 1 BDLR Sawtooth merge, 1.9" rollers, 3" Center, 24" incoming lines, 30.25" main line $1000 ea. $1250 ea.
Rapistan, 66.25"W, BDLR, 1.9-2.25" Center, 7/16" hex shafts, 8" drive belt, 6.25" frame, 16' sections $66.50/ft $83.00/ft

Please Call [800.598.5532] or for pricing, availability and lead times on this and other Power Conveyors. If you don't see what you're looking for, our conveyor solutions specialists can often find it.

Pricing & availability subject to change without notice. Purchases of component parts only (tails, nose-overs, drives, etc.) may be restricted. Please call SJF for additional details.
