Belt Conveyors

Belt Over Roller Decline Video

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

This video demonstrates a belt over roller conveyor decline moving boxes to a lower level.

Please Call [800.598.5532] or for pricing, and more details on our belt conveyors.

Belt Over Roller Conveyor Infographic

Belt Conveyor Guide

With belt over roller conveyor, the belt can be either sliderbed supported or supported by return rollers located underneath the load rollers. Belt on roller conveyor is a fairly common type of powered conveyor. view entire article

Belt Driven Conveyor Guide

By

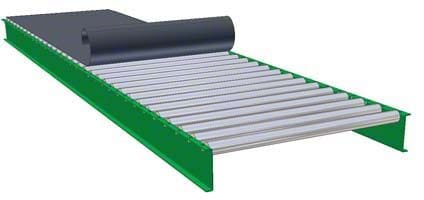

Belt Over Roller Conveyor

With belt over roller conveyor (sometimes called belt on roller or BOR), the belt can be either sliderbed supported or supported by return rollers located underneath the load rollers. Belt on roller conveyor is a fairly common type of powered conveyor and is what many people think of when they envision powered conveyor. Belt on roller conveyor is very useful for transporting light and medium weight loads between locations.

Belt Over Roller Conveyor Cross Section

In addition to being a good general purpose powered conveyor, belt over roller is also a desired solution for inclines or declines. Powered belt over roller conveyor provides much control over the orientation and placement of loads, which can be good for bulky, irregularly shaped products. Because product orientation is easily controlled with belt over roller, it also makes a good conveyor to use in induction and sortation conveyor systems.

SJF is an authorized nationwide distributor of Omni conveyor. SJF can provide other popular brands at your request. We can provide custom conveyor solutions for clients large and small - nationwide. In fact, the employees in SJF's Genesys division are among the best in the business for providing cutting edge warehouse conveyor handling systems and solutions. Call us and speak with any of our friendly conveyor solutions specialists. [800-598-5532]

Used Power Conveyor - Belt on Roller

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

This belt conveyor was purchased in good condition and is currently in-stock and stored indoors at SJF's main facility in Winsted, MN. We also have several used belt conveyor curves, drives and more available but not always listed. Component items we usually have in stock include: adjustable conveyor stands, used conveyor belts, air take-ups, conveyor belt cleaners, conveyor belt fasteners, conveyor belt scrapers, guardrails, conveyor belt tracking devices, idlers, conveyor belt systems, and more.

Conveyor Dimensions Guide

Conveyor Measurements
Description Used (As-Is) Refurbished
Starting As Low As
Rapistan - 24.25" BOR, old style $24/ft $30/ft
Bushman 9' x 23.5" OAW BOR drive, incline, feeder and straight drive $1150 ea. $1437.50 ea.
Bushman 24.5" OAW air take-ups for BOR or slider bed - like new, still in crate call call
Bushman 29" OAW air take-ups for BOR or slider bed - like new, still in crate call call
Rapistan 410 - 30.5"W BOR $28/ft $35/ft
Hytrol 12' L x 34" OAW BOR drive $1250 ea. $1562.50 ea.
Alvey, 24.5"W, BOR, 1.9-2" Centers, 7/16" hex, 4.5" frame, 10' long with drive $1800 ea. $2250 ea.
Alvey, 24.5"W, BOR, 1.9-9" Centers, 7/17" hex, 4.5" frame, 10' long with drives $1800 ea. $2250 ea.
Alvey, 26.75"W, BOR, 2.25-6" Centers, 5" frame $26/ft $32/ft
ASCI, 30"W, BOR, 1.9-6" Centers, 7" frame, assembled units $28/ft $35/ft

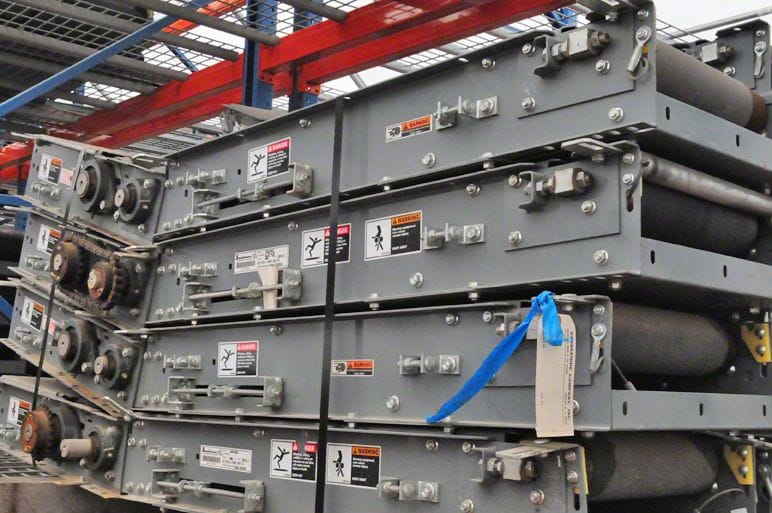

Bushman BOR Feeders, 18.5"OAW, 4'L $510 ea $637.50 ea
Buschman, 23.5"W, BOR tails $550 ea. $687.50 ea.
Bushman Gap belt 18-1/2" & 24-1/2" OAW 10' & 15' OAL $1800 ea $2200 ea
Buschman, 23.5"W, BOR, 1.9-8" Centers, 5" frame $24/ft $30/ft
Buschman, 24.5"W, BOR, 1.9-6" Centers, 6.25" frame $24/ft $30/ft
Description Used (As-Is) Refurbished
Starting As Low As
Ermanco, 21"W, BOR drives, assembled on a 10' section $1150 ea. $1437.50 ea.
Hytrol, 24"W, BOR, 1.9-3" Centers, 6.5" galv frame $24/ft $30/ft
Interlake, 21"W, BOR, 1.9-6" Centers, 3.5" frame $22.50/ft $28/ft
Mathews, 30"W, BOR drive, 1.9-6" Centers, 3.5" frame, mounted on 10' section SOLD SOLD
Motion Corp, 24.25"W, BOR, 1.9-3" Centers, 5" frame $24/ft $30/ft
Rapistan, 23.5"W, BOR, 1.9-8" Centers, punches for 4"Centers, 5" frame $24/ft $30/ft
Rapistan - 2 to 1 BOR Sawtooth merge, 1.9-3"c/c, 24" incoming lines, 30.25" main line $6000 ea. $8000 ea.
Rapistan - 3 to 1 BOR Sawtooth merge, 1.9-3"c/c, 24" incoming lines, 30.25" main line $10000 ea. $14000 ea.
Versa Ferguson, 27"W, BOR drive frame, 1.9-9" Centers, 7.5" frame, no drive $25.50/ft $32/ft

Please Call [800.598.5532] or for pricing, availability and lead times on this and other Power Conveyors. If you don't see what you're looking for, our conveyor solutions specialists can often find it.

Pricing & availability subject to change without notice. Purchases of component parts only (tails, nose-overs, drives, etc.) may be restricted. Please call SJF for additional details.
