Accumulation conveyor is typically used in conjunction with other conveyor types in a complete conveyor system. Accumulation conveyor consists of pop-up sensor rollers located in zones which use a pressurized air system... view entire article

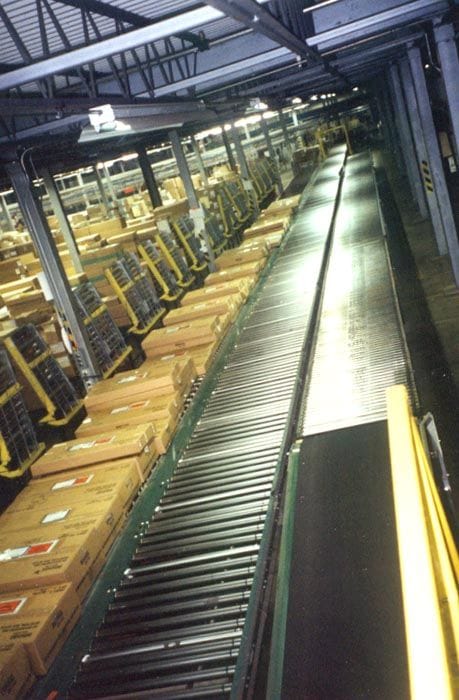

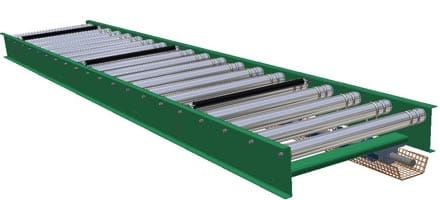

Accumulation conveyor is typically used in conjunction with other conveyor types in a complete conveyor system. Accumulation conveyor consists of pop-up sensor rollers located in zones which use a pressurized air system to hold your product in a queue until it receives a signal to release it to the next stage of operations. This can include moving products one at a time onto a weigh station, case sealer, sort system, palletizer, or any other work station.
There are several types of common accumulation conveyor, however two are more common than the others. Zero pressure accumulation conveyor will eliminate package collisions on the conveyor line by leaving gaps between each individual box, while minimum pressure accumulation conveyor will place the individual boxes next to each other with little back pressure.
Accumulation conveyor can be the most vital link in any large conveyor system. Without it, your sortation system, packaging machine, or other machines will quickly become overloaded and will not function properly.
SJF is an authorized nationwide distributor of Omni conveyor. SJF can provide other popular brands at your request. We can provide custom conveyor solutions for clients large and small - nationwide. In fact, the employees in SJF's Genesys division are among the best in the business for providing cutting edge warehouse conveyor handling systems and solutions. Email us today to discuss your unique conveyor needs - or call us and speak with any of our friendly conveyor solutions specialists. [800-598-5532]
| Other 'Used Conveyor' Pages | ||||
|---|---|---|---|---|
| > Accumulation Conveyor | Chain Driven Conveyor | Gravity Roller Conveyor | Renewed Conveyor | Telescoping Conveyor |
| Belt Driven Conveyor | Conveyor Curves | Gravity Skatewheel Conveyor | Sliderbed Conveyor | Trash Conveyor |
| Belt Over Roller Conveyor | Flexible Conveyor | Lineshaft Conveyor | Sortation Conveyor | |
We also have several used accumulation conveyor curves, drives, rollers and more available but not always listed.
Please call SJF Sales at 800.598.5532 for additional details, and pricing on this and other used accumulation conveyor.
| Description | Cost When New | As Low As |
|---|---|---|
| 30" Lineshaft Accumulation | $90/ft | $35/ft |
| Ermanco Accuroll - 30" OAW | $90/ft | $35/ft |

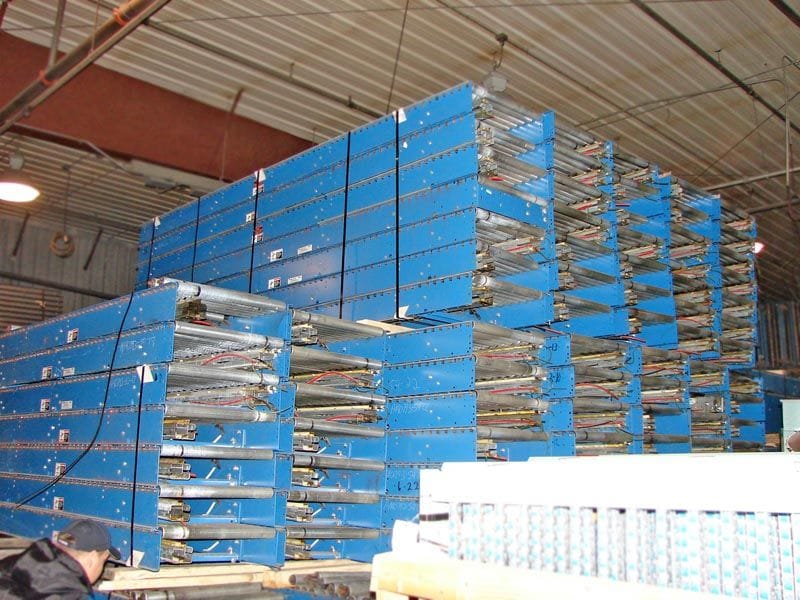

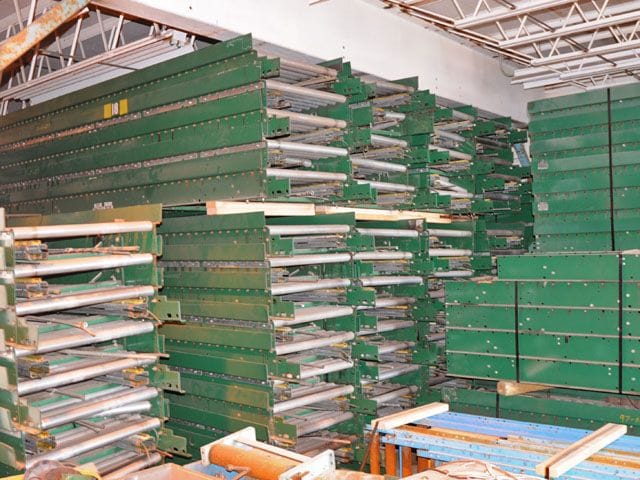

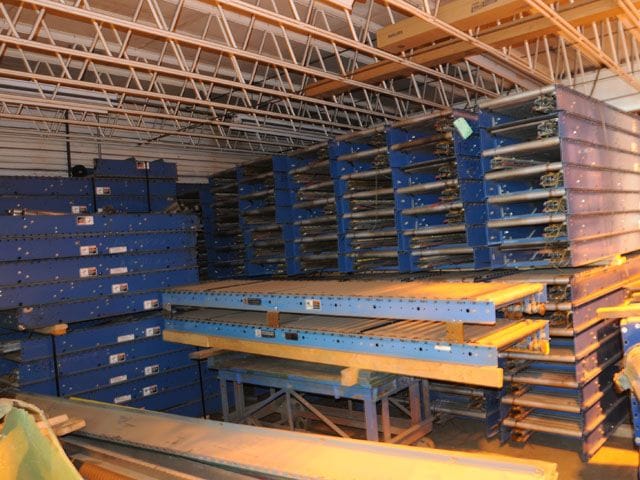

| Rapistan 1276 Accumulation, 24" OAW 1.9" rollers on 2" centers, 24" zones, 22 drives | $80/ft | $30/ft |
| Rapistan 1276 Accumulation, 30" OAW 1.9" rollers on 3" centers, 24" zones, 7 drives, built in guard rails | $90/ft | $35/ft |
| Hytrol 18" OAW min. pressure accumulation, 1-3/8" rollers on 3" centers - with drives | $75/ft | $25/ft |
| Alvey Pallet Accumulation 56" OAW Padded Chain Drive 2-1/2" on 3" c/c Photo Eye Controlled 5' Zones | $241.00/ft | $100/ft |

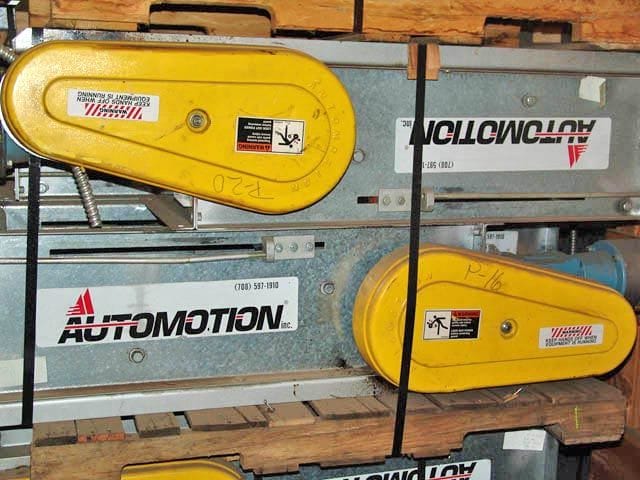

| Automotion Belt Drive Live Roller, 30Ό" W, Inter, 3 Center, 1.9 dia. roller, 6 frame, Accum., 12" Zones, 10-0 | call | $35.00/ft |
| Automotion Belt Driven, 24Ό" W, Live Roller, Inter, 3 Center, 1.9 dia. roller, 6" Frame, Accum., 24"Zone, 10-0 | call | $35.00/ft |

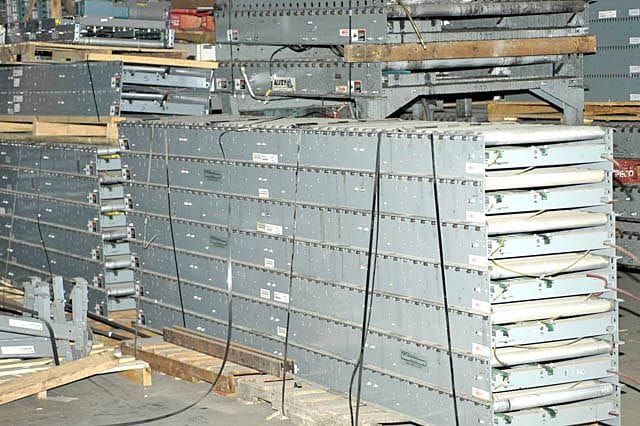

| Buschman, 23.5 W, AC250, 24 zones, 1.9-3 Centers, 5 frame | call | $35.00/ft |
| Buschman, 24.5 W, Accuglide Transportation | $76.00/ft | $25.00/ft |
| Buschman, 24.5 W, Accuglide, 1.3-3"Centers pop out rollers, 24 zones, single mech., sensors, 6.25" frame | call | $35.00/ft |
| Bushman Accuglide Accumulation & Transportation Drives 24-1/2"OAW, 150 FPM | $3750.00 ea. | $2,800 ea. |
| Description | Cost When New | As Low As |
| Bushman Accuglide Pallet Accumulation 54" OAW 2-1/2" on 3" c/c Photo Eye Control 5' Zones | $241.00/ft | $100/ft |
| Ermanco, 18.5W, Lineshaft, 24 zones, 1.9-3 Centers, 4.5 frame, 2 sensor rollers, and 3 air balls transfer rails per 7-6bed section | call | $35.00/ft |
| Ermanco, 18.5W, Photo eye Lineshaft acc, 27 zones, 1.9-3 Centers, 4.5 frame, missing photo eyes | call | $35.00/ft |
| Ermanco, 24.5W, Lineshaft acc. drive. 27zones, 1.9-3 Centers, 4.5" frame, drives | call | $750.00 ea. |
| Ermanco, 24.5W, Lineshaft acc., 27 zones, 1.9-3 Centers, 4.5 frame, intermediate | call | $35.00/ft |
| Hytrol belt Driven Live Roller, 26 W, 3 Center, 1.9 dia. roller, 6.5 Frame, Accum, 24" Zone, Total 3 Drives, 6 Tail End, 7 Inter., 10-0 | $200.00/ft | $65.00/ft |
| Hytrol Belt Driven Live Roller, 30 ½" W, 3 Center, 1.9 dia. roller, 9 Frame, Accum., 12 Zone, Total 2 Drives, 2 Tail End, 4 Inter., 10-0 | $250.00/ft | $68.00/ft |
| Hytrol Belt Driven Live Roller, 30" W, Inter, 3 Center, 1.9 dia. roller, 4.5" Frame, Accum, 24 Zones, 10-0 | $200.00/ft | $60.00/ft |
| Hytrol Line Shaft drive, 26 W, 3" center, 1.9 dia. roller, 4.5" Frame, 30' Accum., 10'-0 | call | $35.00/ft |
| Hytrol Line Shaft, 30" W, inter, 3" center, 1.9 dia. roller, 4.5" Frame, 30 Accum., 7-6 | $130.00/ft | $45.00/ft |
| Hytrol Line Shaft, 30 W, inter, 3 center, 1.9 dia. roller, 4.5" Frame, 30 Accum., 10'-0 | $130.00/ft | $45.00/ft |
| Hytrol, 12W, Lineshaft acc., 24 zones, 1.375-3 Centers, 10 section with drive Pcs. Assembled | call | $35.00 ea. |
| Description | Cost When New | As Low As |
|---|---|---|
| Hytrol, 12W, Lineshaft acc., 24 zones, 1.375-3 Centers, 4.5 frame, intermediate | call | $25.00/ft |
| Hytrol, 18W, BDLR photo eye acc tails, 24 zones, 1.9-3 Centers pop out rollers. Each, tails | call | $350.00 ea. |
| Hytrol, 18W, BDLR photo eye acc, 24 zones, 1.9-3 Centers pop out rollers, 8 drive belt, intermediates | call | $35.00/ft |
| Hytrol, 18W, BDLR photo eye acc. drives, 24 zones, 1.9-3 Centers pop out rollers, Each, drives | call | $350.00 ea. |
| Mathews, 24W, 30 zones, 1.9-3 Centers, 5 frame, has sensor rollers but no other carrier rollers, 3 dead rollers per zone | call | $25.00/ft |
| Rapistan, 18.5 W, APC, 24 zones, 1.9-3 Centers, 6.25 frame | $125.00/ft | $40.00/ft |
| Rapistan, 24.25 W, 1276, 24 zones, 1.9-3 Centers, 6.25 frame | $130.00/ft | $40.00/ft |
| Rapistan, 30.5 W, 1276, 24 zones, single mechanical sensors, 1.9-3 Centers, 6.5" std. frame | $140.00/ft | $40.00/ft |
| Rapistan, 30.5 W, 1276, 24 zones, single mechanical sensors, 1.9-3 Centers, 6.5 frame with 4 integral guardrail | $140.00/ft | $40.00/ft |
| Rapistan, 31 W, 1276, 24 zones, double mechanical sensors, 1.9-3 Centers, 6.5 frame, with 4 integral guardrail | $140.00/ft | $40.00/ft |
| Rapistan, 36.5 W, 1276, 1.9-3 Centers, 6.25 frame | $150.00/ft | $45.00/ft |
| Rapistan 49" OAW, #4415 Pallet Accumulation | $241.00/ft | $100.00/ft |
| Unex Accumulation, 18 oaW, 30" Zones | call | $20.00/ft |
Pricing & availability subject to change without notice.
Our sales representatives have access to one of the largest used equipment networks in the nation. If you can't find the material you're looking for on our website, click here to request a quote and one of our reps will contact you within 24 hours to help you find the material you need.
Items we usually have in stock, but not listed on the website include: used conveyor component parts, adjustable conveyor stands, used accumulator conveyor controls, used conveyor belt tracking devices, used conveyor drives, used conveyor guardrail, used conveyor junctions, conveyor sortation controls, used accumulation conveyor curves, used zero pressure accumulation, used accumulation systems and more.
If you don't see it on this page, please call us. We'll be glad to help you track it down. 800.598.5532
