Cantilever Rack, also known as furniture or pipe rack is a great solution for storage of long, bulky materials such as lumber and PVC or metal pipes. Furniture rack is a style of cantilever racking that can be decked... view entire article

Heavy Duty Cantilever Rack

Cantilever Rack, also known as furniture or pipe rack is a great solution for storage of long, bulky materials such as lumber and PVC or metal pipes. Furniture rack is a style of cantilever racking that can be decked to provide static storage similar to pallet racking, with the advantage that it provides easier storage and retreival of bulky or oddly sized material than traditional pallet rack. Cantilever rack is a very efficient means of storing material. The storage density with cantilever rack can be very high if you plan out how you will use it efficiently, but generally cantilever rack's flexibility makes it a very popular storage solution with near immediate return on investment.

Cantilever Rack Uprights

Like pallet rack, cantilever has specific components that work together to create larger bays and rows of storage. Uprights are the main structural components in any cantilever rack installation. Uprights work with bases (when referring to uprights here, we are speaking about complete upright/base combinations) to create the 'backbone' of the rack. Uprights are available in single, or double sided configurations - with the only difference between the two being that with double sided uprights, you can store material on both sides of the rack. Like pallet rack, there are many different makes and brands that do not all work together. You must match the same make arm and base to build a complete unit. Please Be Aware - NEVER put arms on the back side of single sided cantilever rack. Even if the upright has holes to hold arms on both sides, this is a very dangerous practice and should be avioded at all costs.

Cantilever Rack Arms

Similar to pallet rack beams, cantilever arms make up the actual 'levels' that are used for storage. The arms are typically adjustable on the upright to create shelf levels of whatever height are needed. Arms can be straight or inclined to hold goods that may roll off. Some arms even come with a "lip" that attaches to the end of the arm to prevent loads from slipping off the front of the rack.




Cantilever Rack Braces

The last component of cantilever rack is bracing. The braces go between uprights and stabilize the rack laterally. Braces are not intended to hold loads and should only ever be used to connect and brace the uprights in a row. The braces will be the same length as the spacing between uprights.

If you'd like to read more about Cantilever Racks - please view our complete warehouse rack guide. It contains information on determining capacities, assembly instructions and other safety information for many types of warehouse racking.

SJF is an authorized distributor of Meco, Interlake and Mecalux cantilever racks. We can provide other brands at your request, or we also have our own SJF branded cantilever rack available for sale from our in-house inventory in Winsted, MN. Whether you're storing just a few pipes or bundles of wood, or have an entire facility that uses cantilever racking, SJF's solutions specialists can help you get the cantilever rack that's right for you. Call or email us today! [800-598-5532]

Recent Cantilever Rack Acquisitions

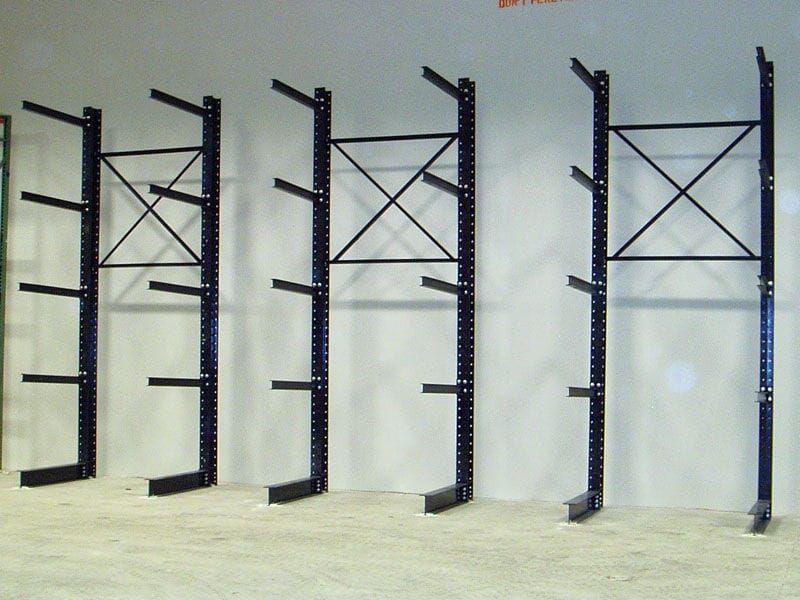

Cantilever RackCantilever Rack

More Cantilever Photos

Cantilever Rack Upright/Base Cantilever Rack Upright/Base
Cantilever Rack Upright/Base Cantilever Rack

Get a Quote on Material Handling Equipment
Qty (ea) Description As Is
8 ea Cantilever racking, double sided, 12' tall, with base $225.00 ea
2 ea Cantilever racking, double sided, 10' tall with 82" base $200.00 ea
10 ea Cantilever, structural double sided, 17' towers with base $225.00 ea
38 ea Cantilever arms, 48" $30.00 ea
44 ea Cantilever arms, 36" $25.00 ea
60 ea Cantilever arms, 48" x 4", i-beam profile $25.00 ea

Horizontal & X-Braces also available - please call an SJF representative for more information - 800-598-5532.

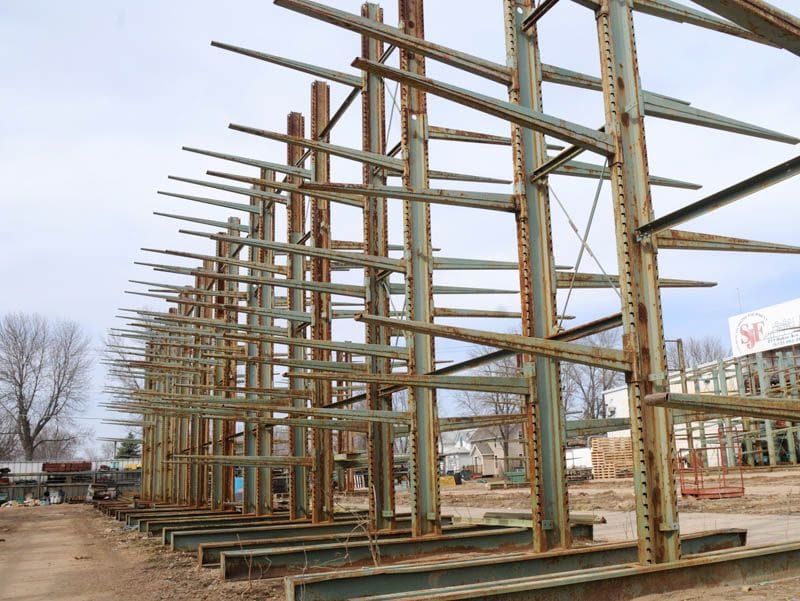

Very Heavy Duty Cantilever Rack

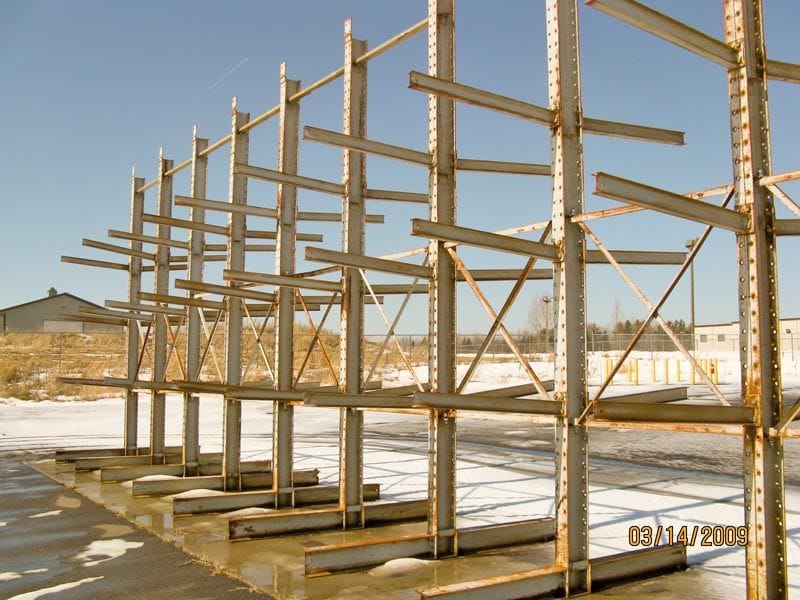

Heavy Duty Cantilever RackHeavy Duty Cantilever Rack

Don't miss this great opportunity to pick up some VERY heavy duty cantilever racking. This rack is Lodi or Interlake style and is very tall with long arms and a huge capacity. This material works great if you have piles of heavy metal sheet stock or other long and heavy bar stock including pipes and even lumber. Call an SJF representative today to learn more about this prime opportunity. 800-598-5532

Get a Quote on Material Handling Equipment

More Photos

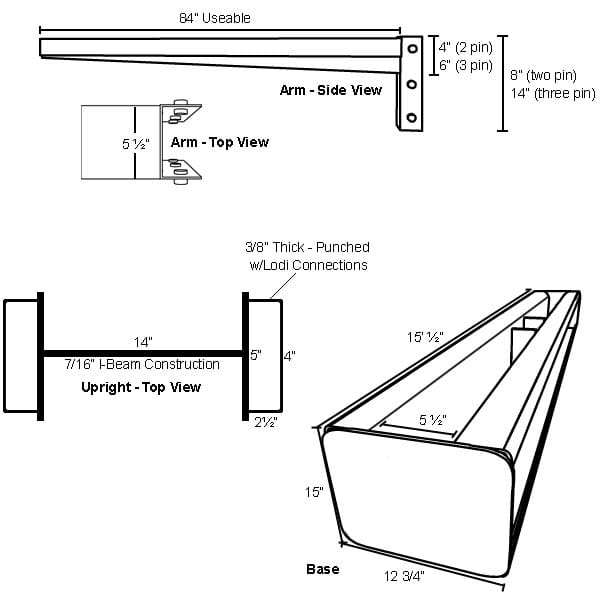

Cantilever Rack Diagram

Specs:
Uprights - I-Beam Core w/Lodi Connections
6 ea. - 22' 4" Tall
11 ea. - 25' 2" Tall
1 ea. - 24' 4" Tall
2 ea. - 23' 2" Tall
2 ea. - 26' 4" Tall

Bases
22 ea. - 15'+ Long, Double Sided

Arms
212 ea. - 84" useable length
(8" connectors [2 pin] &
14" connectors [3 pin])



Interlake Cantilever (furniture) Rack system

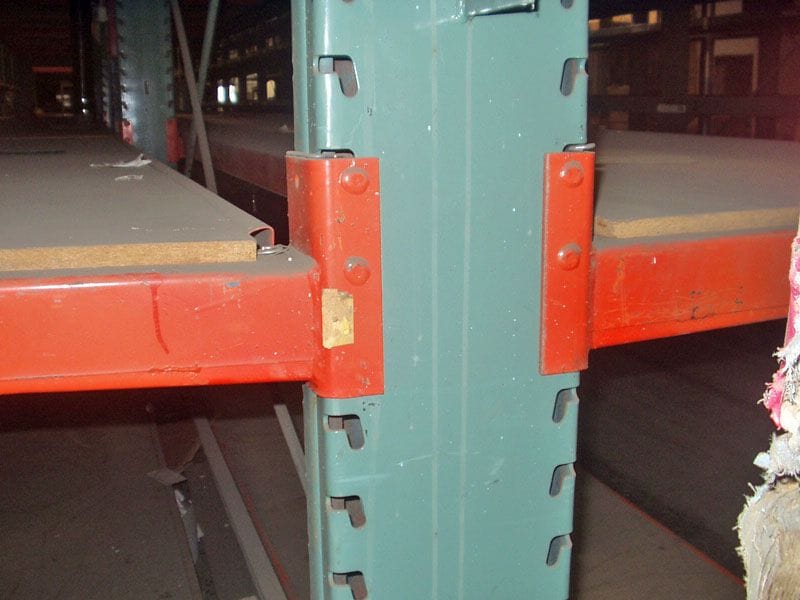

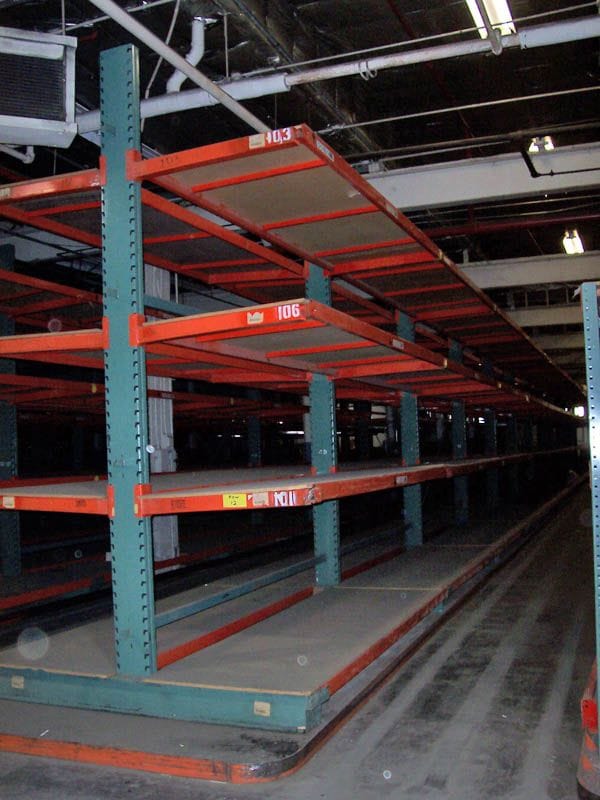

Interlake Cantilever Rack - closeupInterlake Cantilever Rack - closeup

This cantilever Rack was purchased from a facility in IL where it was being used in a furniture rack system. Although it was being used as furniture rack, it can also be easily reconfigured for standard cantilever racking. Please call us at 800-598-5532 for details.

Get a Quote on Material Handling Equipment

More Photos

Interlake Cantilever Rack






System Specifications
67 ea. - Uprights, 14'H w/ double base
458 ea. - Arms, 45" L
188 ea. - Straight Horizontal Channel Braces, 140"L 32 ea. - X Braces
610 ea. - Welded shelf assemblies with supports (45" x 140") NO decking material

Can't find what you're looking for?

Our sales representatives have access to one of the largest used equipment networks in the nation. If you can't find the material you're looking for on our website, click here to request a quote and one of our reps will contact you within 24 hours to help you find the material you need.

Cantilever Components - Arms, Uprights & Braces


Cantilever Rack Loaded With WoodCantilever Rack used for Wood Storage

Cantilever rack is a very popular item with us and typically when we get a system in, it will be sold almost immediately. These cantilever parts and many more not listed here are immediately available through SJF. If you can't find what you need here, please call us at 800-598-5532, or email us at support@sjf.com.

These pictures are representative of cantilever rack parts available for sale.
Actual parts sold will vary in color, style and construction.

For photos of the equipment below, please contact a SJF sales representative at 800.598.5532.

Get a Quote on Material Handling Equipment

More Photos

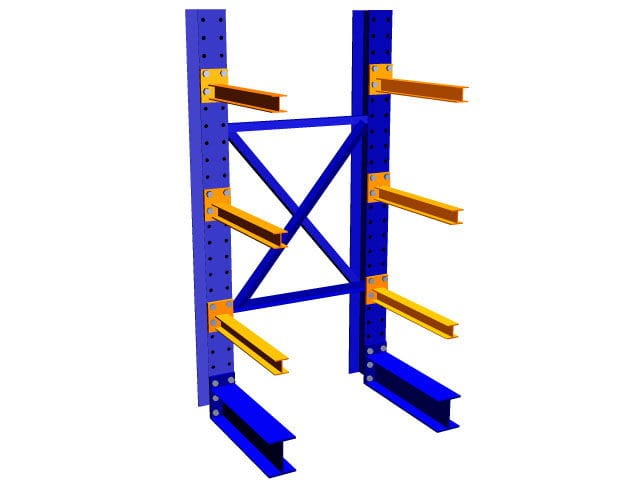

Single Sided Cantilever Rack Double Sided Cantilever Rack Cantilever Rack : Straight Arm Cantilever Rack : Tapered Arm Cantilever Rack : Sway Brace Set
