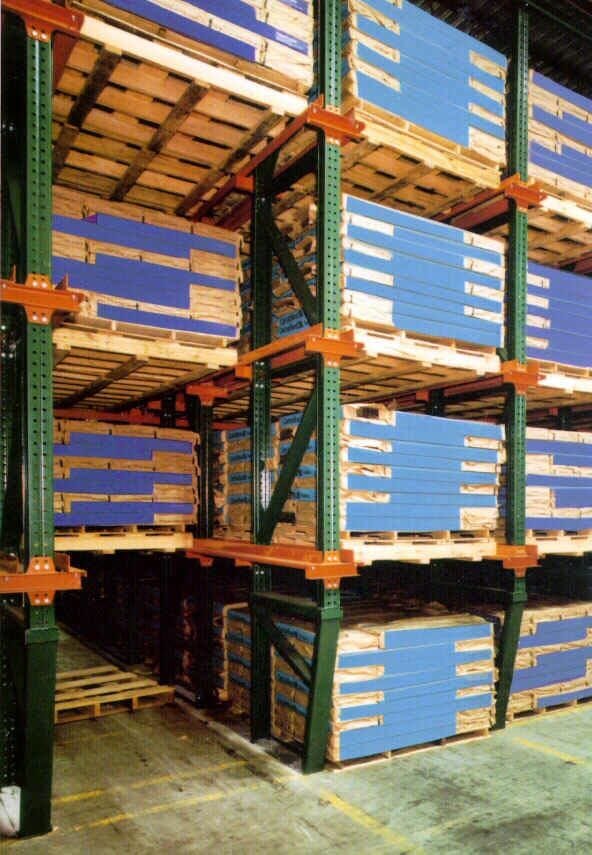

Drive In Racks

Traditional pallet rack is a great solution for many warehouses, but if you have a lot of inventory that shifts on a regular basis, drive in or drive through rack is a storage solution you may want to consider. While traditional static rack storage allows for many rows of pallet racking with aisles between the individual rows, drive in and drive thru racking allows for a much denser arrangement of your stored product. Both drive-in and drive through rack systems allow more efficient use of available space than traditional multi-aisle selective racks systems. In fact, when compared to a conventional selective rack system, the same amount of storage can be acheived with a high density drive in or drive thru system in 80% less space.

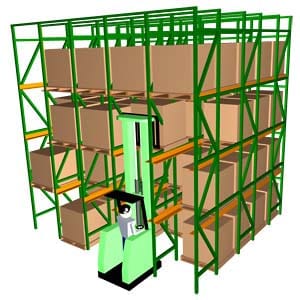

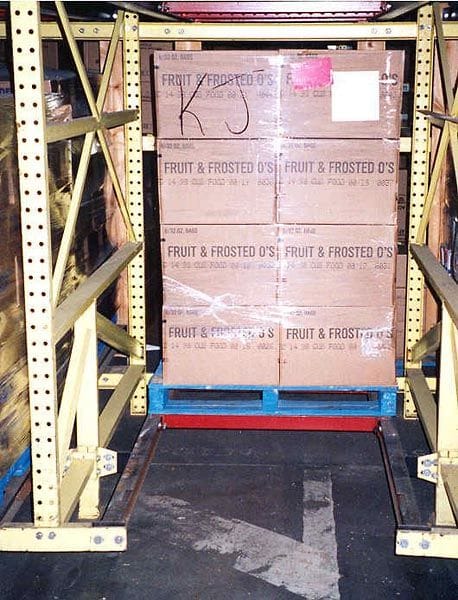

High density storage racks work by utilizing standard pallet rack uprights in conjunction with rail beams or more simply, rails to store the pallet loads in a very dense configuration. The key difference between these racks and selective pallet racks is that the forklift truck operates inside of the rack itself and there are no specified lanes between the rows. The forklifts enter into the individual bays of the rack and the bays themselves can be as long or as short as needed.

Drive in rack and Drive through rack systems decrease storage and retrieval time while increasing efficiency and productivity among workers. Not only do they benefit your operations, they can also decrease your bottom line by giving you more storage room per dollar spent on racking. Because these racks create a more uniform load in a confined storage area, your forklift operators working in the system become more skillful drivers. In addition to these benefits, consider this - drive-in & drive-thru systems are very energy efficient. Since the product is so densly loaded in this type of system, there is less air to be heated or cooled between your pallets and your forklifts don't need to drive as far to pick or place loads thereby using less fuel.

If you'd like to read more about Drive In Racks - please view our complete warehouse rack guide. It contains information on determining capacities, assembly instructions and other safety information for many types of warehouse racking.

SJF is an authorized distributor of Interlake and Mecalux drive in racks. We can provide other brands at your request. Whether you're storing several thousand pallets, or several dozen, SJF's solutions specialists can help you find the drive-in rack that's right for you. Call or email us today! [800-598-5532]

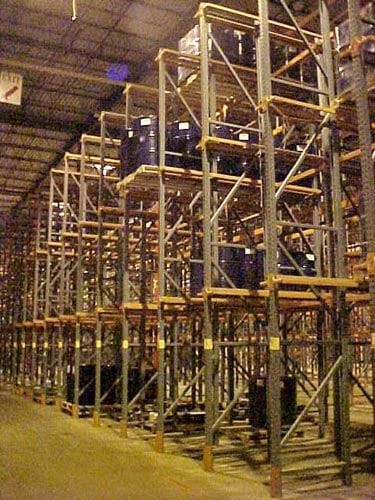

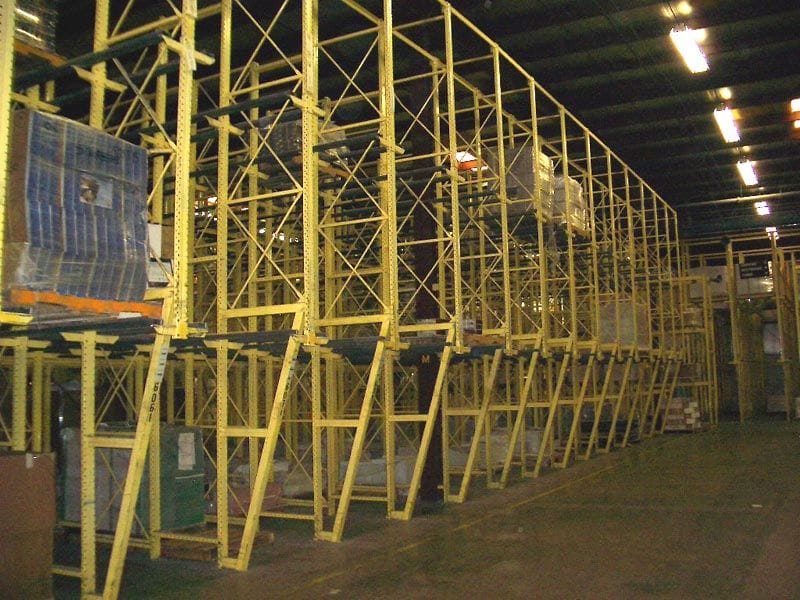

2500 Pallet Positions - Speedrack Drive-In Rack

Speedrack Drive-In Rack

FOB MN:
Additional Photos Available upon request.
Call us at 800-598-5532.

Get a Quote on Material Handling Equipment

Specifications:
4 Systems -

648 pp - Drive-in 5+7 deep-floor + 2 rail levels, (18) bays, Cant leg front upright to 56", 56" between uprights, 38" between rails, 21' tall front & mid uprights-top tied, other uprights are 18'.

320 pp - Drive-in 5+5 deep-floor + 3 rail levels, (8) bays, Cant leg front upright to 56", 56" between uprights, 38" between rails, 21' tall front uprights-top tied, other uprights are 18'

330 pp - Drive-in 5+5 deep-floor + 2 rail levels, (11) bays, Cant leg front upright to 56", 56" between uprights, 38" between rails, 21' tall front uprights-top tied, other uprights are 18'.

1155 pp - Drive-in 11 deep-floor + 2 rail levels, (35) bays, Cant leg front upright to 56", 56" between uprights, 38" between rails, 21' tall front and mid uprights-top tied, other uprights are 18'.

These systems can be had for As Low As $40/pallet position.
Call SJF For Details - 800-598-5532

Large Quantities Drive-In Rack - FOB MN

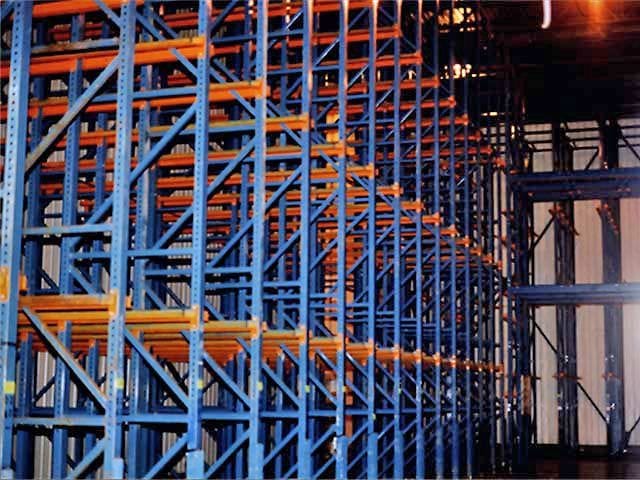

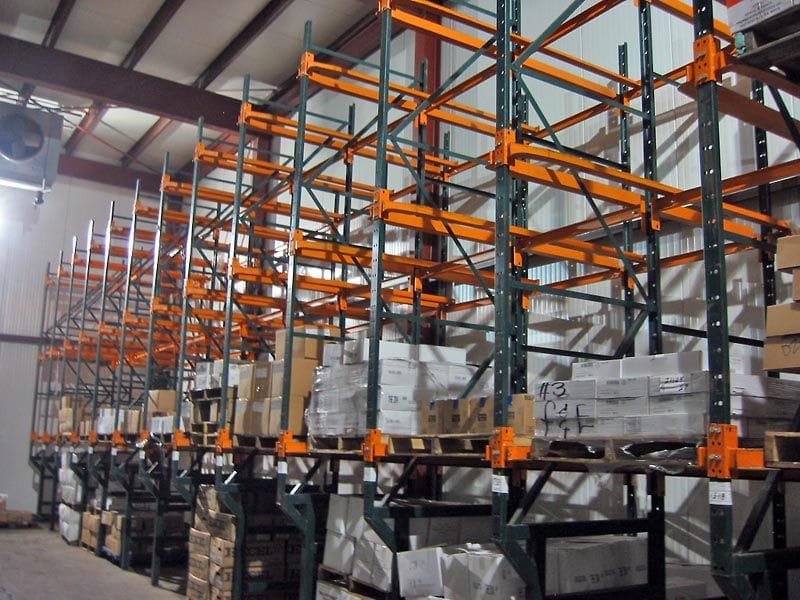

Interlake Drive In Rack

We just purchased several thousand pallet positions of very clean drive in racking. This drive-in rack was set up in several free-standing pods and can be reconfigured and combined in a myriad of different configurations. Please call an SJF representative for more information or to discuss a configuration that would work for you. [800-598-5532]

More Photos

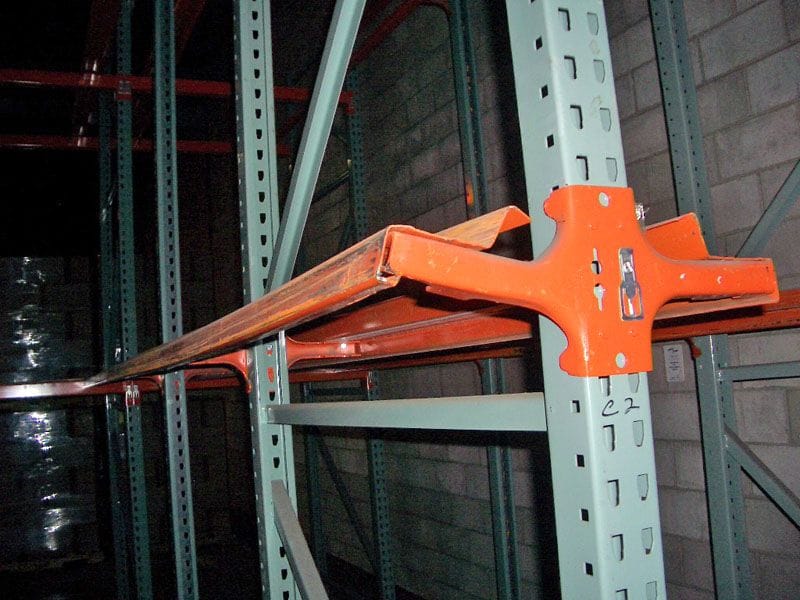

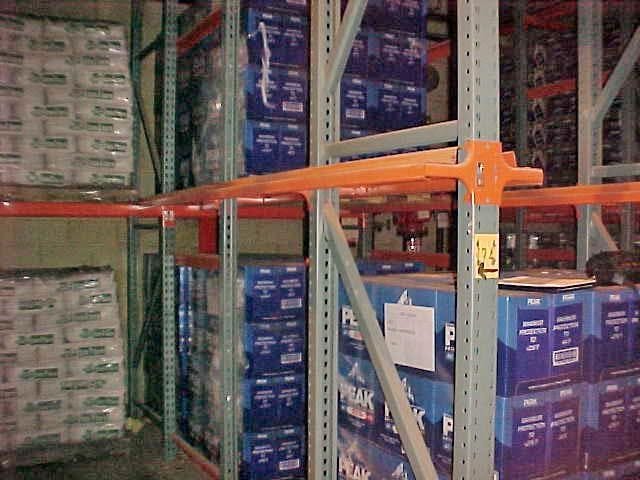

Interlake Drive In - closeup of clips, rails & uprights

Qty (Pallet Positions)	Description	As Low As Price
450	Interlake Drive-In - 3 High x 2 & 3 Deep	$35.00/PP
616	Interlake Drive-In - 4 High x 3 & 4 Deep	$35.00/PP
2304	Interlake Drive-In - 3 High x 4 Deep	$35.00/PP
180	Structural Drive-In - 2 High x 5 Deep	$35.00/PP
96	Ridge-U-Rack Drive-In - 2 High x 3 Deep	$35.00/PP
36	Ridge-U-Rack Drive-In - 3 High x 3 Deep	$35.00/PP

Interlake Drive-In Rack

We're always on the lookout for Interlake drive-in rack in good condition. Below are just a few of the systems we have found in the recent past. Please call us for current pricing and availabilty on these or any other drive in racks you see on this page. [800-598-5532]

11 bays Interlake, floor plus 4 high x 4 deep, 220 pallet positions - 48" wide pallets, 6.75" arms, rollformed rails punched every 2" - Set-up: (Front to back) 40" upright, 39" gap, single post, 42" row spacer, 40" upright

Specifications:

11 qty. - Front uprights, 40" x 29', 4" x 3" posts
11 qty. - Single posts, 3" x 3" x 21'
66 qty. - Row spacers (6 per column line) 42" long
11 qty. - Back uprights, 40" x 21', 3" x 3" posts
22 qty. - Top tie beams, channel style, 56" long
88 qty. - Pallet/rail support beams, rollformed beams w/open bottoms, 3" x 3" x 57" long

27 bays Interlake, floor plus 3 high x 3 deep, 324 pallet positions - 48" wide pallets, 6.75" arms, rollformed rails, rails punched every 2" - Set-up: (Front to back) 40" upright, 42" gap, 40" upright

Specifications:

27 qty. - Front uprights, 40" x 29', 4" x 3" posts
27 qty. - Back uprights, 40" x 21', 3" x 3" posts
162 qty. - Pallet/rail support beams, rollformed beams w/open bottoms, 3" x 3" x 57" long

5 bays Interlake, floor plus 3 high x 4 deep, 80 pallet positions - 48" wide pallets, 6.75" arms, rollformed rails, rails punched every 2" - Set-up: (Front to back) 40" upright, 39" gap, 42" row spacer, 40" upright

Specifications:

6 qty. - Front uprights, 40" x 29', 4" x 3" posts
6 qty. - Single posts, 3" x 3" x 21'
36 qty. - Row spacers (6 per column line) 42" long
6 qty. - Back uprights, 40" x 21', 3" x 3" posts
10 qty. - Top tie beams, channel style, 56" long
30 qty. - Pallet/rail support beams, rollformed beams w/open bottoms, 3" x 3" x 57" long

5 bays Interlake, floor plus 3 high x 5 deep, 460 pallet positions - 48" wide pallets, 6.75" arms, rollformed rails, rails punched every 2" - Set-up: (Front to back) 40" upright, 43" gap, 40" upright, 40.5 " gap, 40" upright

Specifications:

24 qty. - Front uprights, 40" x 29', 4" x 3" posts
48 qty. - Middle & Back uprights, 40" x 21', 3" x 3" posts
46 qty. - Top tie beams, channel style, 56" long
138 qty. - Pallet/rail support beams, rollformed beams w/open bottoms, 3" x 3" x 57" long

Please call SJF Sales at 800.598.5532 or email us at support@sjf.com with questions on this used Interlake drive in rack.
Pricing & Availability subject to change without notice.

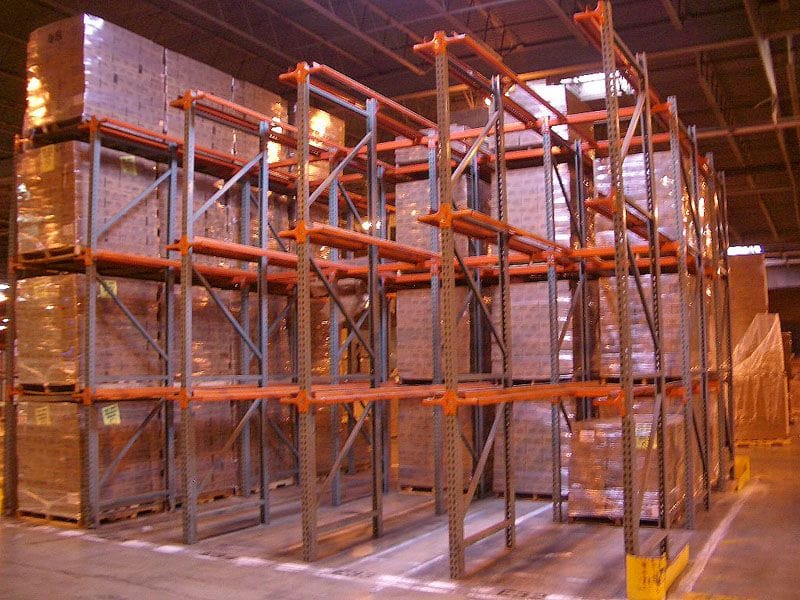

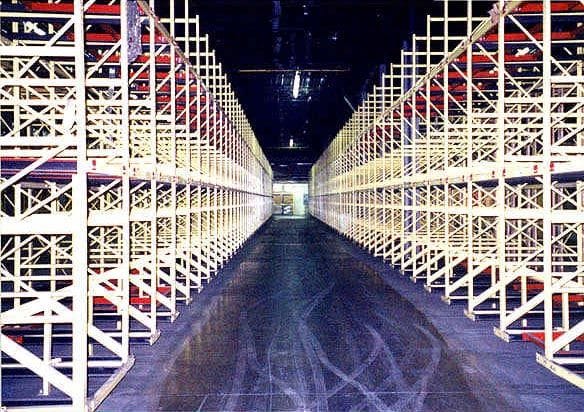

Miscellaneous Drive-In Rack

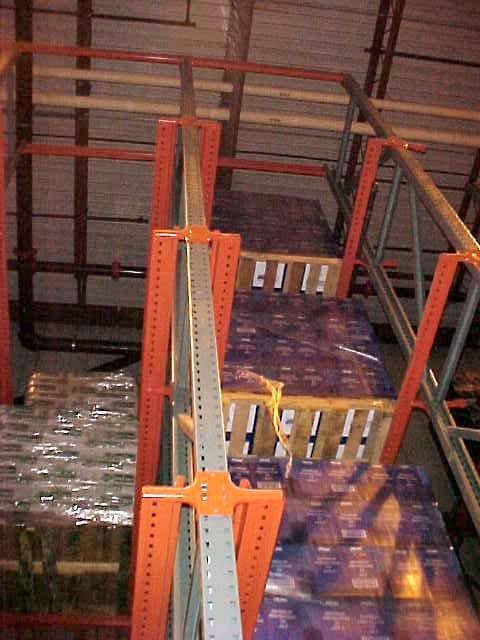

Drive In Rack w/set back frames

As you can see, we have several thousand pallet positions of drive-in rack from multiple different manufacturers. Additionally, If we don't have it in-stock, we can usually find it through our large dealer network. Please call us for current pricing & availability on this or any other drive in rack you need. [800-598-5532]

More Photos

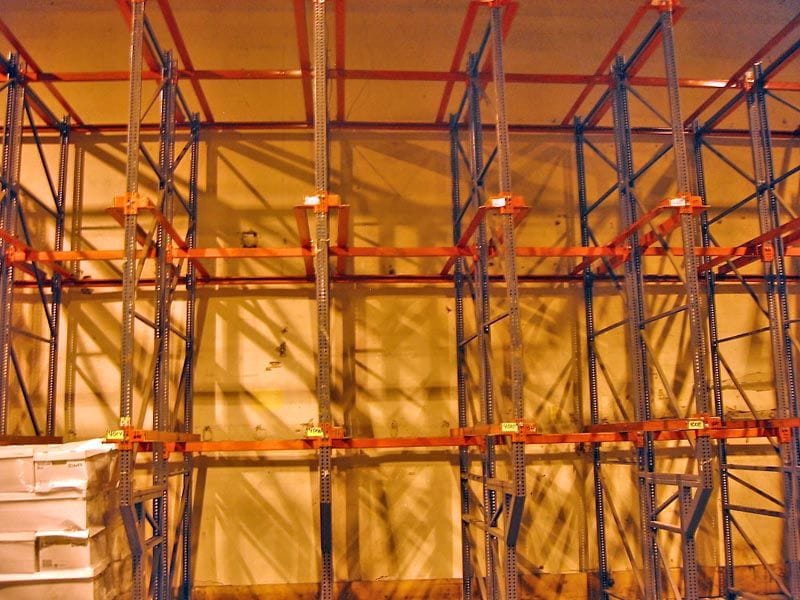

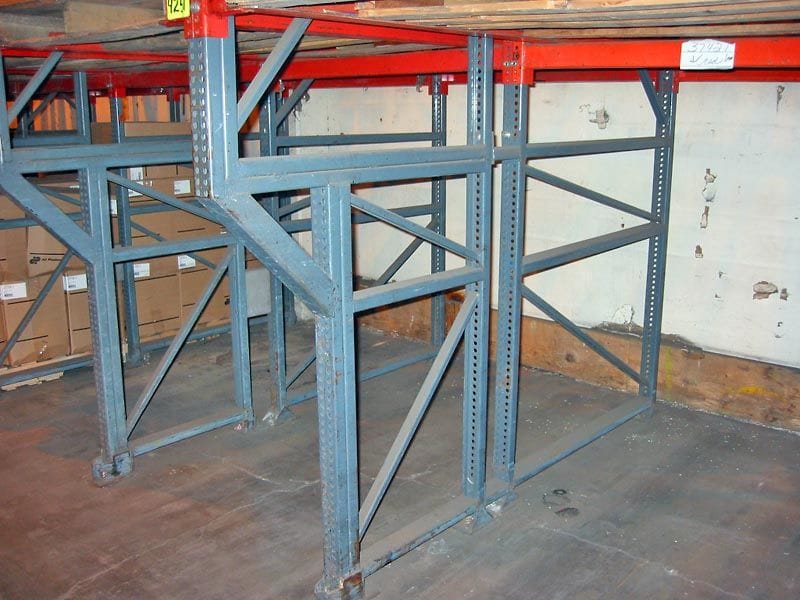

Hi-Line Drive-In Rack System - 2 deep x 4 high (floor + 3 levels) - 384 total pallet positions
Front Upright: 42" x 16' - 3" x 1.625" cant leg up to 48", 28" at base
2 ea 6" row spacers bolt into face of each upright
Back Upright: 48" x 16' - 3" x 1.625" straight posts
96" long rails, 36" between rails
41.5" pallet support area
51" c/c uprights
6 ea - 48" x 3" open beams per bay
3" x 3" x 3/16" structural rails

Hi-Line Drive-In Rack System - 2 deep x 3 high (floor + 2 levels) - 54 total pallet positions
Front Upright: 42" x 16' - 3" x 1.625" cant leg up to 48", 28" at base
2 ea 6" row spacers bolt into face of each upright
Back Upright: 48" x 16' - 3" x 1.625" straight posts
96" long rails, 36" between rails
41.5" pallet support area
51" c/c uprights
6 ea - 48" x 3" open beams per bay
3" x 3" x 3/16" structural rails

Steelking Drive-In Rack System - 2 deep x 4 high (floor + 3 levels) - 112 total pallet positions
Front Upright: 48" x 16' - 3" x 3" structural upright, cant leg up to 48", 38" at base
46.5" row spacers
Back Upright: mono post x 16' high - 3" x 3" structural upright
51" c/c uprights
96" long rails, 37.5" between rails
41.75" pallet support area
3" x 3" x 3/16" structural rails

Used Drive-In Rack We have drive-in rack available in 2, 3, 4, 5, 6 or 7 deep bays and up to 4 or 5 levels high. Several brands and sizes available.
Now as low as $35.00 per pallet position

Call SJF for more details: 1.800.598.5532
