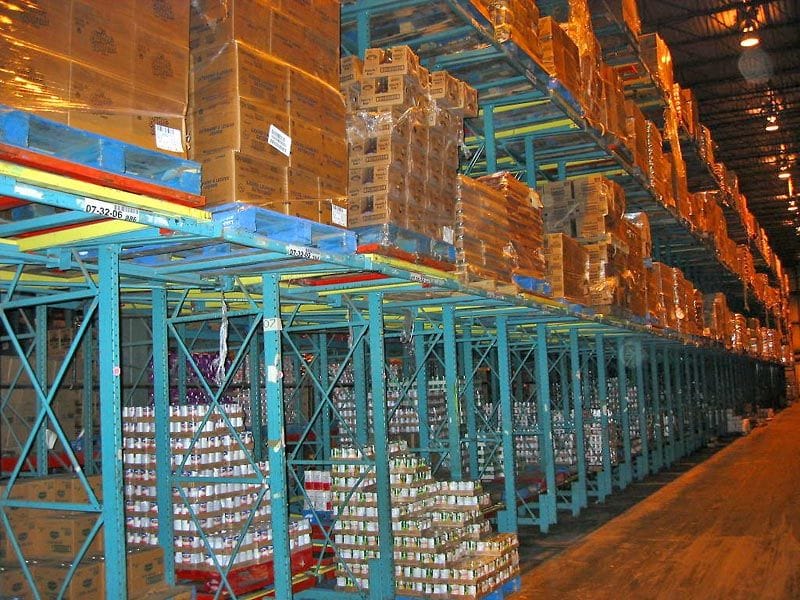

A push-back racking system can be a great option when you're tight on space. In a push back rack system, the pallets each sit in a tray that rides along rails in the rack frame itself. The push back rails are supported on an incline and gravity moves the trays along the rails towards the front of the rack. From the front, the loads are both picked and deposited while the back of the rack remains closed. When a load is deposited to the front of the rack, it will "push back" the previosuly placed load, thus decreasing picking times but keeping the number of picking faces to choose from high.
Push-back racks can store multiple sized pallets up to six deep and four high making push-back rack a very efficient LIFO (last in, first out) system. This type of dynamic storage system allows you to have all the benefits of a high-density storage system without the drawbacks of a drive-in system.
If you'd like to read more about Push Back Racks - please view our complete warehouse rack guide. It contains information on determining capacities, assembly instructions and other safety information for many types of warehouse racking.
SJF is an authorized distributor of Interlake and Mecalux push-back racks. We can provide other brands at your request. Whether you're storing several thousand pallets, or several dozen, SJF's solutions specialists can help you find the push back rack that's right for you. Call or email us today! [800-598-5532]
2 deep x 4 high
Structural 3" face w/4"hole centers - for 40"w x 48"d pallets
98.5" long 3"c-channel individual rails
Front upright - 54" x 20', 3" face, double posted to 8'
44.5" space - 3" x 1.5" x 20' mono-post
4" c-channel front and back beams
5" c-channel center beam
(15) 60" single wide bays and (36) 96" double wide bays
696 Total Pallet positions As Low As: $60 / Pallet Position
3 deep x 3 high
Structural 3" face w/4"hole centers, for 40"w x 48"d pallets
148.5" long 3"c-channel individual rails
Front upright - 54" x 20', 3" face, double posted to 8'
48" space - 48" x 20', 3" face upright
96" bays have 4" c-channel front and back beams and 5" c-channel center beams
60" bays have all 4" c-channel beams
(10) 60" single wide bays and (24) 96" double wide bays
522 Total Pallet positions As Low As $60 / Pallet Position
Just acquired from a facility in IA, we have already shipped this back to our MN facility. All of this rack has been inspected and it is in good condition. Please call SJF Sales for additional details. [800-598-5532]
Specifications (prices listed are for large lots)
Interlake New style Pushback racking
12 bays (6 bays back to back)
4 deep x 3 levels high
54" x 18' uprights with 3" x 3" posts
92" beams, 45" row spacers
Layout from front to back: 54" upright-45"row spacer-mono post-45"row spacer-54" upright.
Total pallet positions = 280
As Low As: $80.00/pallet position
WOW! This pushback is now being offered at the lowest price ever. Usually priced at over $130 per pallet position, we're now offering these systems at only $15 pallet position. This is a cash & carry sale and all sales made will be first-come, first served. Don't Wait! Call today [800-598-5532]
Specifications (prices listed are for large lots)
Speedrack pushback system
3 deep x floor + 4 levels
240 bays
3600 total pallet positions
Speedrack pushback system
3 deep x floor + 3 levels
48 bays
576 total pallet positions
SOLD
We have also acquired from a facility in Idaho, this very nice pushback system in good condition. Please call SJF Sales for additional details. [800-598-5532] Additional Photos available on request.
Specifications (prices listed are for large lots)
2 deep x 4 high pushback racking, structural

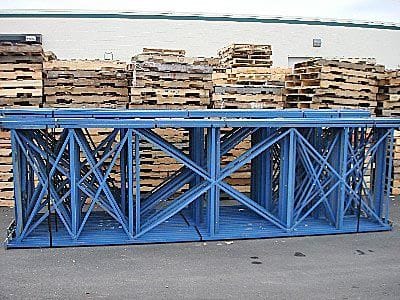

5 ea. - 52" x 16', structural uprights, 3" face
11 ea. - 54" x 16', structural uprights, 3" face
16 ea. - 16' tall mono posts, 3" face

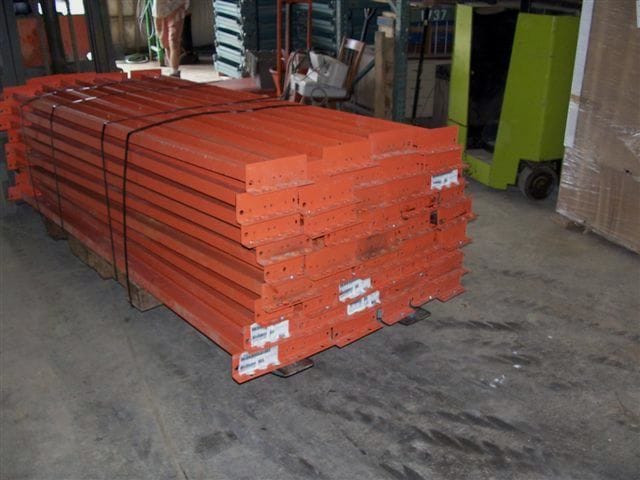

180 ea. - 96" x 4" structural beams, 10" tall clips

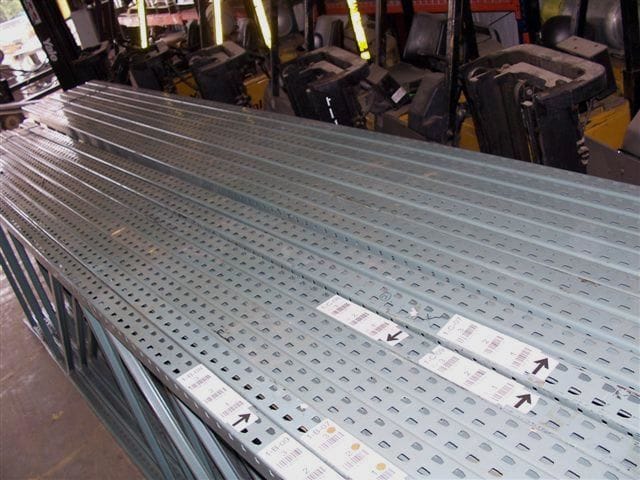

120 ea. - Rail sets, 100.5" long rails

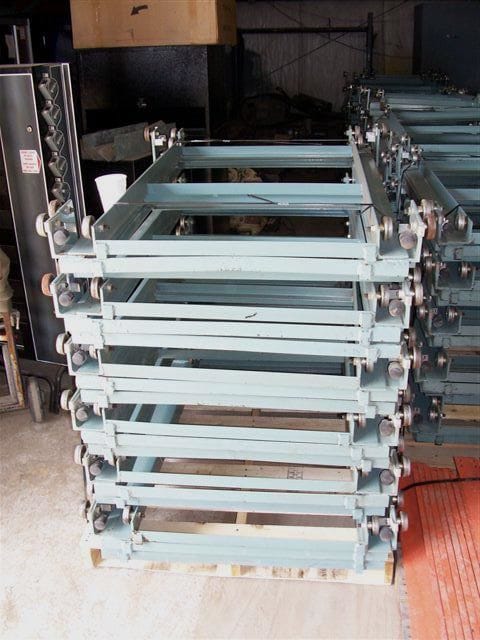

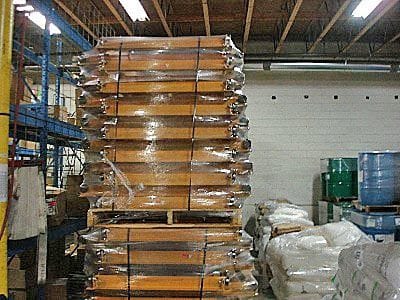

120 ea. - Carts for 2 deep
240 Pallet Positions Total
As Low As: $65.00/pallet position
We have also acquired from a facility in Wisconsin, these two nice Ridge-U-Rack pushback systems in excellent condition. Please call SJF Sales for additional details. [800-598-5532] Photos available on request.
Specifications (prices listed are for large lots)
40 pallet positions
2 deep pushback racking
double wide per bay
2 levels
34.5" x 44" cart
11' tall uprights
As Low As: $70.00/pallet position
Specifications (prices listed are for large lots)
210 pallet positions
3 deep pushback racking
double wide per bay
3 levels
12' tall uprights
As Low As: $70.00/pallet position
Used Push Back Rack
We currently have used push back rack available in several bay depths and up to 4 or 5 levels high. Several brands and sizes available.
Now as low as $60.00 per pallet position
Call SJF for more details: 1.800.598.5532

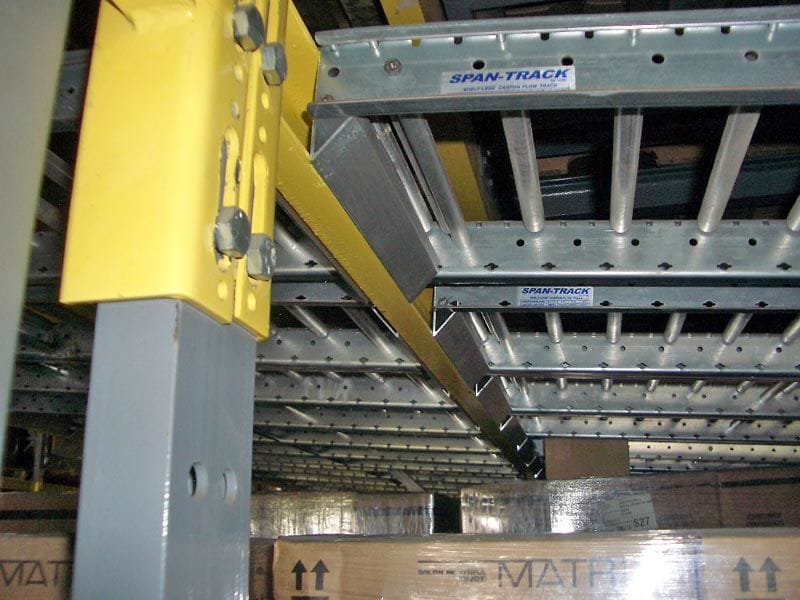

SteelKing Structural Pushback System - double wide bays, utilizes heavy duty pallet flow rails
System Specifications
104 ea. - Uprights, 252" x 56", 4" face - $75.00 ea.
768 ea. - Beams, 5" & 6" x 110", C-Channel - $20.00 ea.

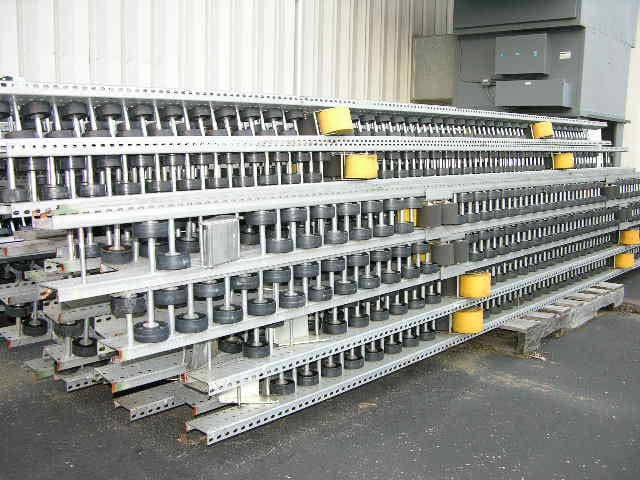

285 ea. - Interoll dual staggered poly wheel pallet flow, 14' L x 2 brakes - $42.00 ea.
857 ea. - Interoll dual staggered poly wheel pallet flow, 14' L - $42.00 ea.
Ridge u rack : 2 levels, not including static floor. 4 deep (three carts)
Each of 8 bays is 111" x 202"D - 128 total pallet positions
Advance : 3 deep
Carts are 60" Long - 220 total pallet positions
Interlake : 2 deep
350 total pallet positions
Advance : 3 deep x 5 high
28' upright - 1000 total pallet positions
Advance : 4 deep
94" beams - 1200 total pallet positions
Frazier : 2 deep
800 total pallet positions
Please call Sales [800.598.5532] with questions on any of these push-back rack systems.
