Almost any static pallet rack system can be retrofitted to be a more efficient dynamic storage system because both pallet flow rails and case flow track simply drop into place using the existing racking components as their support structure... view entire article
Similar in concept to pushback rack is a pallet flow system. The pallets move from back to front and as they are removed from the rack, the next in line takes the previous pallet's place. Unlike pushback rack however, the rack is usually loaded from the back and picked from the front.
Almost any static pallet rack system can be retrofitted to be a more efficient dynamic storage system because the pallet flow rails drop into place using the existing racking components as their support structure. Lanes of pallet flor rails usually have built-in 'brakes' that work to slow the pallets to a smooth gentle pace as they glide down the lane. One of the biggest strengths of pallet flow rails over pushback is that flow rails will allow a longer lane. For example, while pushback may be able to store pallets 5 deep, a pallet flow system will allow as many as 10-15 pallets deep.
Case flow track (often called Spantrack) is a great way to turn your existing static pallet racking into a dynamic gravity fed picking system. Typically, this type of flow track can be installed right onto existing pallet rack using a specialized clip that fits on the top of your existing beams. The loads are supported on an incline without the need for intermediate shelf supports and enable gravity-based movement, thus creating a first in-first out system.
If you'd like to read more about Pallet Flow - please view our complete warehouse rack guide. It contains information on determining capacities, assembly instructions and other safety information for many types of warehouse racking.
SJF is an authorized distributor of Interoll, Mallard and Westfalia pallet flow rails, and Unarco, Keneco and Unex case flow track. We can provide other brands at your request. Whatever size flow system you're looking for, SJF's solutions specialists can help you find the components that are right for you. Call or email us today! [800-598-5532]
This is Heavy Duty Unex 3-D Spantrack. Recently purchased and in very good condition - this spantrack is great for converting static rack systems to dynamic
gravity fed systems.
- 200 sections available
- 10" Wide x 115" Long x 2" (tightpack) roller centers
- 2" High heavy duty frame
Was: $48.50 ea.
Price Reduced
Used As-is - as low as: $36.50/stick
Contact Frank Sterner for details. [800-598-5532 x 202]

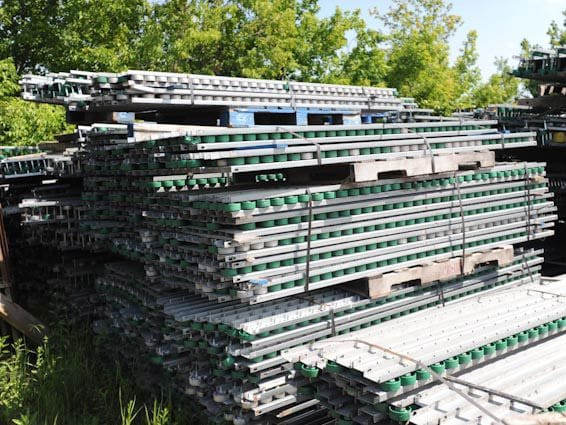

Heavy Duty Unex 3-D Pallet Flow Rail
- Single Inline heavy duty wheels
- (minimal roller damage - approx 10% need repair or replacement)
- 3" wheels in 3" high frame on 3" centers
- 96" Long
Price Reduced
Used As-is - Only: $35/stick
Contact Frank for details.
[800-598-5532 x 202]

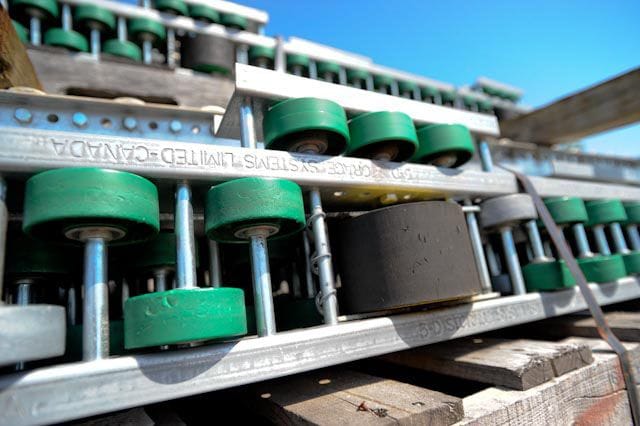

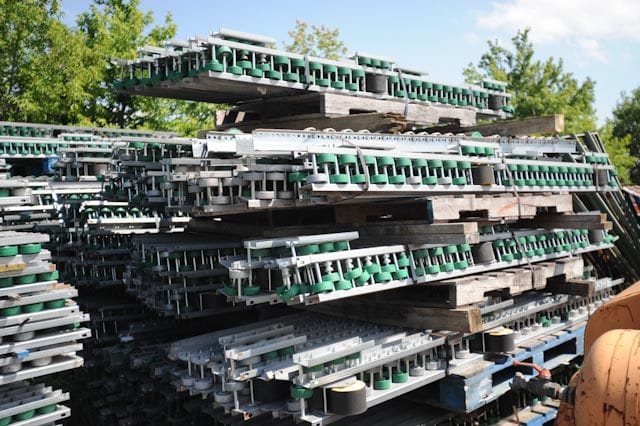

Heavy Duty Dual Staggered Wheel Unex 3-D Pallet Flow Rail
- 200 ea. Available
- Dual Staggered heavy duty wheels
- (minimal roller damage - approx 10%-20% need repair or replacement)
- 3" wheels in 3" high frame on 6" centers
- 100" Long x 6"Wide
- Each stick contains 2 fully functional brakes
Price Reduced
Used As-is - Only: $60/stick
Contact Frank for details.
[800-598-5532 x 202]
Spantrack is a relatively new product that is starting to be used in place of Carton Flow Rack. Spantrack can usually be installed right onto existing pallet racking using a clip that fits on the top of existing beams. The loads are supported on an incline without the need for intermediate shelf supports and enable gravity fed movement. If you're interested in Spantrack or other types of case flow, please call [800.598.5532] or email us at support@sjf.com
| Qty.(ea) | Description |
|---|---|
| 18 (pcs) | 9.5" x 42.5" Span Track - 2" c/c |
| 512 (pcs) | 9.5" x 43.5" Span Track - 2" c/c |
| 35 (pcs) | 9.5" x 70" Span Track - 2" c/c |
| 14 (pcs) | 9.5" x 71.5" Span Track - 2" c/c |
| 120 (pcs) | 8.5" x 72" Shelf Track - 2" c/c |
| 164 (pcs) | 12.5" x 84" Span Track |
Our sales representatives have access to one of the largest used equipment networks in the nation. If you can't find the material you're looking for on our website, click here to request a quote and one of our reps will contact you within 24 hours to help you find the material you need.

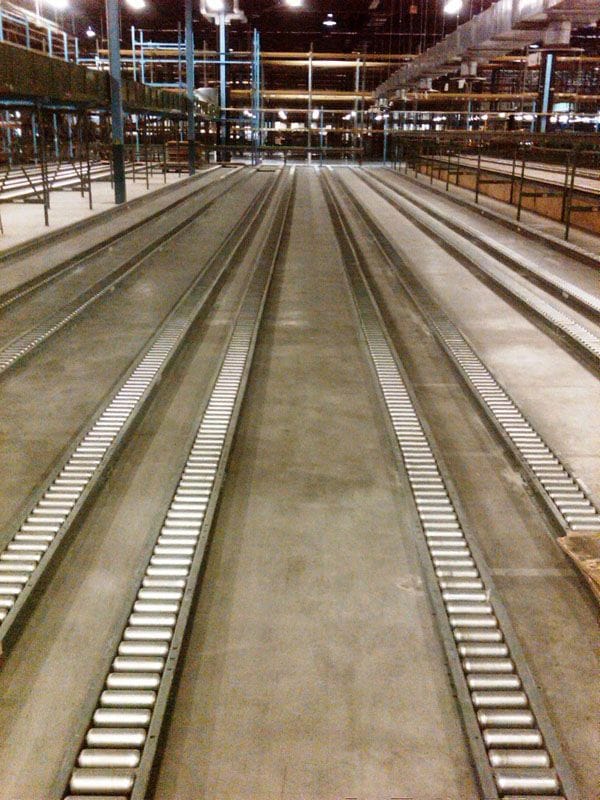

Pallet flow rail is similar to case flow in that it can transform regular static pallet racking into a gravity flow system. It differs in that it can support much more weight than case flow track and is typically used for pallets and not boxes, cases or totes. If you're interested in Spantrack or other types of flow racking, please call [800.598.5532] or email us at support@sjf.com
| Qty.(ft) | Length of Rail (inches) | Description |
|---|---|---|
| 1332' | 168" | Interoll dual staggered poly wheel pallet flow |
| 1870' | 50.75" | Single Steel Wheel Pallet Flow |
| 475' | 100" | Single Steel Wheel Pallet Flow |
| 303' | 140" | Single Steel Wheel Pallet Flow |
| 400' | 98" | Single Steel Wheel Pallet Flow |
| 3528' | 96" | Single Steel Wheel Pallet Flow |
| 962' | 156" | Single Steel Wheel Pallet Flow w/Stop |
| 930' | 92" | Single Steel Wheel Pallet Flow w/Stop |
| 674' | 176" | Single Steel Wheel Pallet Flow w/Stop |
| 304' | 96" | Single Steel Wheel Pallet Flow w/Stop |
| 1146' | 47.25" | Dual Steel Wheel Pallet Flow |
| 1050' | 92" | Dual Steel Wheel Pallet Flow |
| 1500' | 47.75" | Dual Steel Wheel Pallet Flow |
| 275' | 62.5" | Dual Steel Wheel Pallet Flow |
| 218' | 49.5" | Dual Steel Wheel Pallet Flow w/Stop |
| 260' | 53" | Dual Steel Wheel Pallet Flow w/Stop |
| 512' | 97" | Dual Steel Wheel Pallet Flow w/Stop |
| 538' | 46.5" | Dual Steel Wheel Pallet Flow w/Stop |
| 1299' | 43" | Dual Steel Wheel Pallet Flow w/Stop |
| 315' | 86" | Dual Steel Wheel Pallet Flow w/Stop |
| 2488' | 96" | Single Plastic Wheel Pallet Flow |
| 340' | 76" | Single Plastic Wheel Pallet Flow |
| 384' | 144" | Single Plastic Wheel Pallet Flow |
| 3720' | 96" | Single Plastic Wheel Pallet Flow w/Stop |
| 269' | 104" | Single Plastic Wheel Pallet Flow w/Stop |
| 950' | 93" | Dual Plastic Wheel Pallet Flow |
| 581' | 75.75" | Dual Plastic Wheel Pallet Flow |
| 1104' | 96" | Dual Plastic Wheel Pallet Flow |
| 624' | 144" | Dual Plastic Wheel Pallet Flow |
| 272' | 74" | Dual Plastic Wheel Pallet Flow |
| 768' | 196" | Dual Plastic Wheel Pallet Flow w/Stop |
Carousels
Carts / Lifts
Carton Flow
Conveyor
Forklifts
Machinery
& Tools
Mezzanines
Packaging
& Wrapping
Pallet Rack
Specialty
Items
Storage
Racks
Cantilever Rack
Case Flow & Pallet Flow Rail New
Cantilever
New
Beams
New
Uprights
New
Wire Deck
New
Rack Accessories
Other
New Rack
Online
Store
Company
Services
Free Printed Catalog
Industry
Insider
(email list)
3D Spantrack
Single Wheel Heavy Duty Pallet Flow
Dual Wheel Heavy Duty Pallet Flow

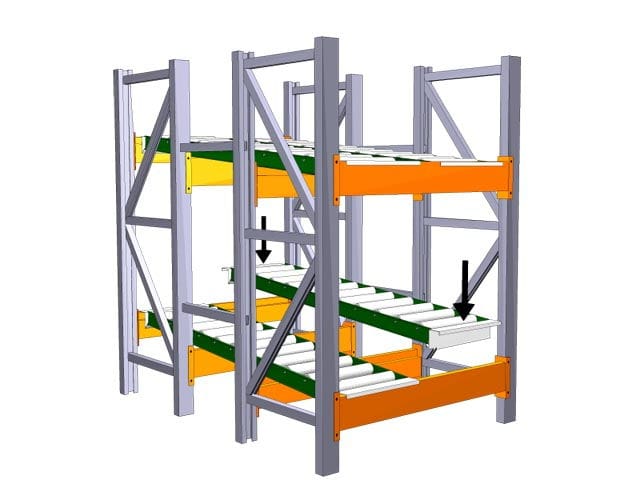

Graphic : Spantrack fitted into pallet racking

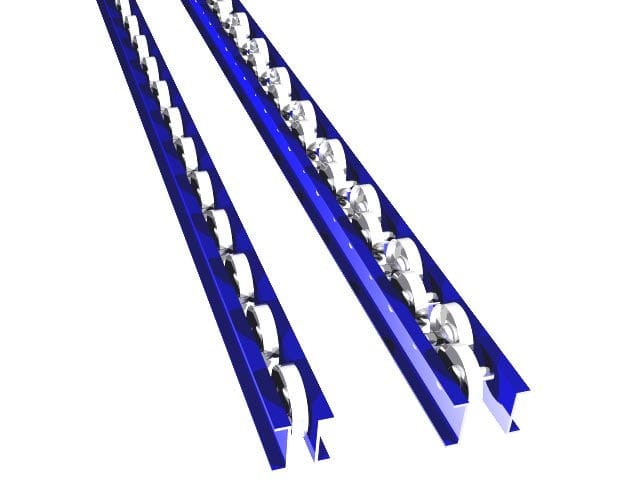

Graphic : Single & Dual Staggared Wheel Pallet Flow Rails
