Lineshaft Conveyor Infographic

About Lineshaft Conveyor

Lineshaft conveyors can be used used for both transporting and accumulating products. Lineshaft makes use of a drive shaft with shafted spools which run the length of the underside of the conveyor. The shafted spools drive belted flexible bands which in turn drive each of the individual load rollers as shown in the illustration. view entire article

Lineshaft Conveyor Guide

Line Shaft Conveyor

Lineshaft conveyors can be used used for both transporting and accumulating products. Lineshaft makes use of a drive shaft with shafted spools which run the length of the underside of the conveyor. The shafted spools drive belted flexible bands which in turn drive each of the individual load rollers as shown in the illustration. Since the rollers are individually powered, lineshaft conveyor can easily be used for accumulation operations where there is a minimum amount of backpressure on the product being transported.

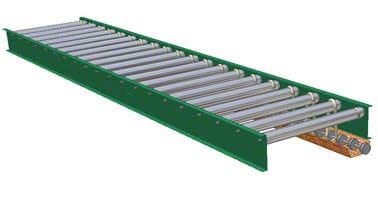

Lineshaft Conveyor Cross Section

The driveshaft is powered by a motor. Some configurations of lineshaft conveyor allow the conveyor to run both forwards or backwards depending on the situation desired. Because there are fewer moving parts, today's lineshaft conveyor is typically quieter than traditional live roller conveyors. The belts also assist in reducing noise by holding the rollers firmly in place inside the frames which results in less rattling.

SJF is an authorized nationwide distributor of Omni conveyor. SJF can provide other popular brands at your request. We can provide custom conveyor solutions for clients large and small - nationwide. In fact, the employees in SJF's Genesys division are among the best in the business for providing cutting edge warehouse conveyor handling systems and solutions. Call us today to speak with any of our friendly conveyor solutions specialists. [800-598-5532]

Line Shaft Powered Conveyors

Quote Button
Chat Button

Call Toll-Free: 800-598-5532

Lineshaft Conveyors

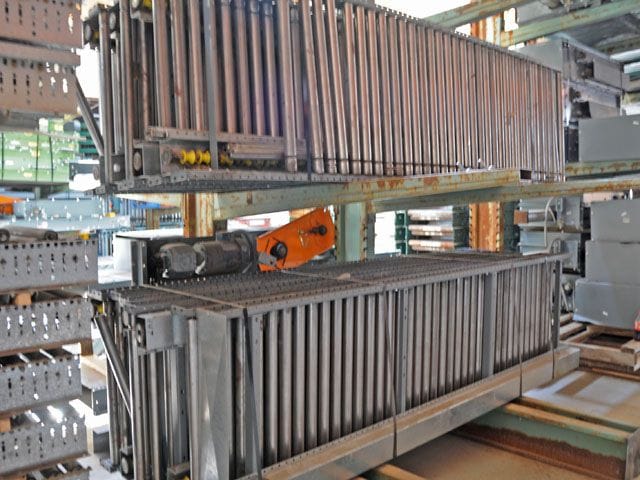

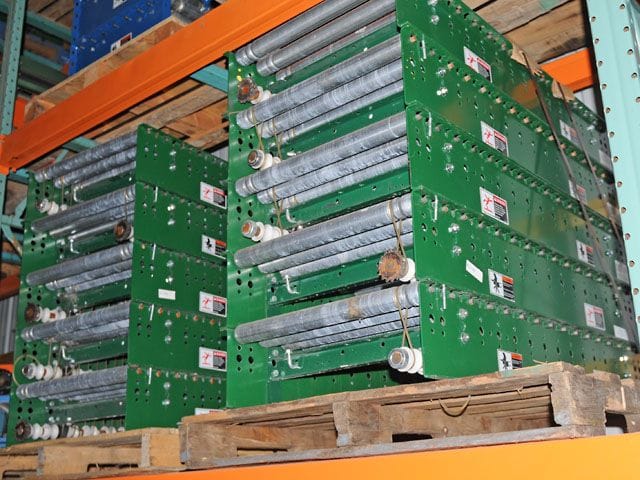

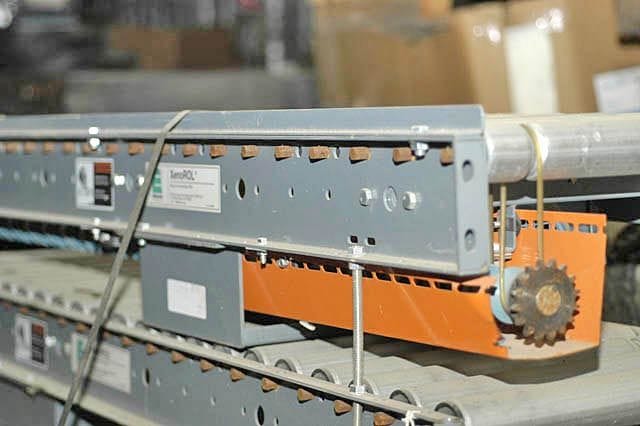

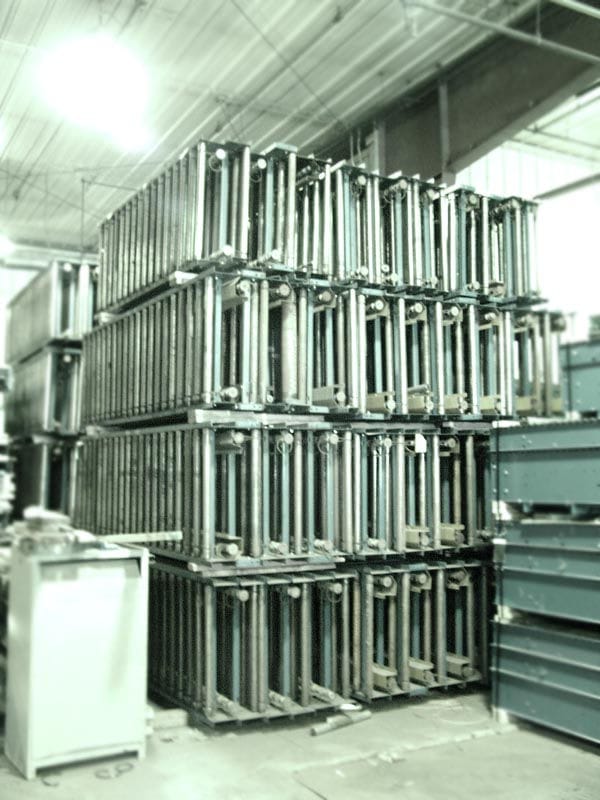

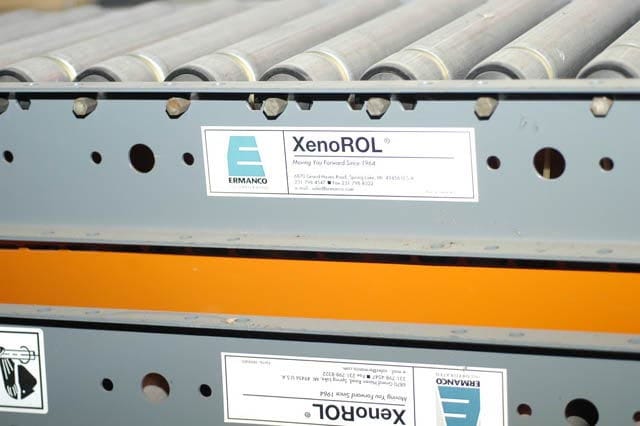

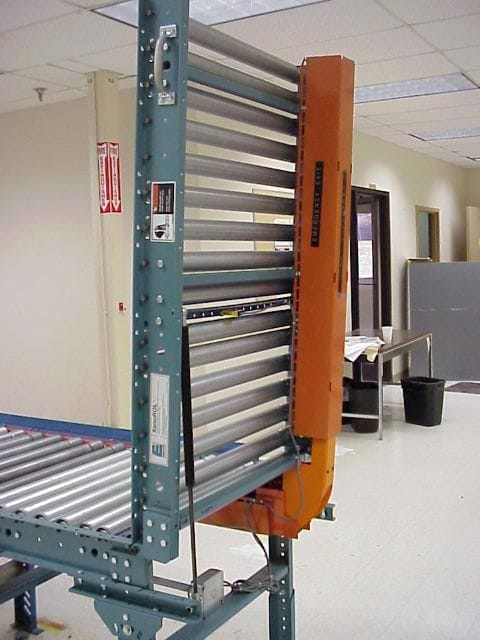

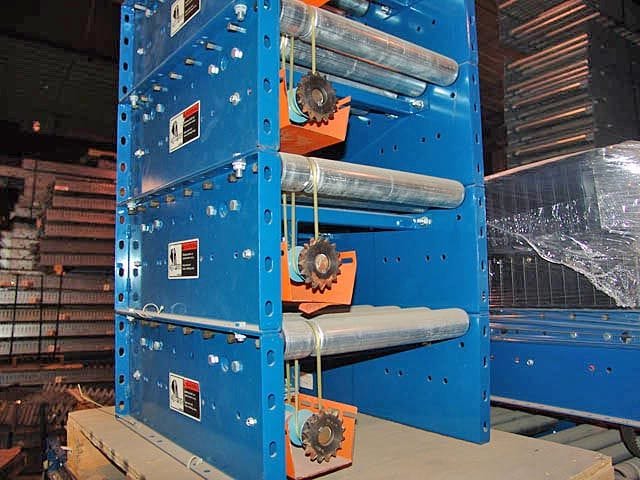

Metzgar Lineshaft Conveyor Ermanco Lineshaft Conveyor - End View Lineshaft Conveyor Rapistan Lineshaft Conveyor Intermediates Ermanco Lineshaft Conveyor Liftgate Versa Lineshaft Conveyor Ermanco Lineshaft - Closeup Versa Lineshaft Conveyor

Lineshaft conveyor brands now in stock include: Hytrol – Ermanco – Metzgar – Interlake – Rapistan - Versa Ferguson

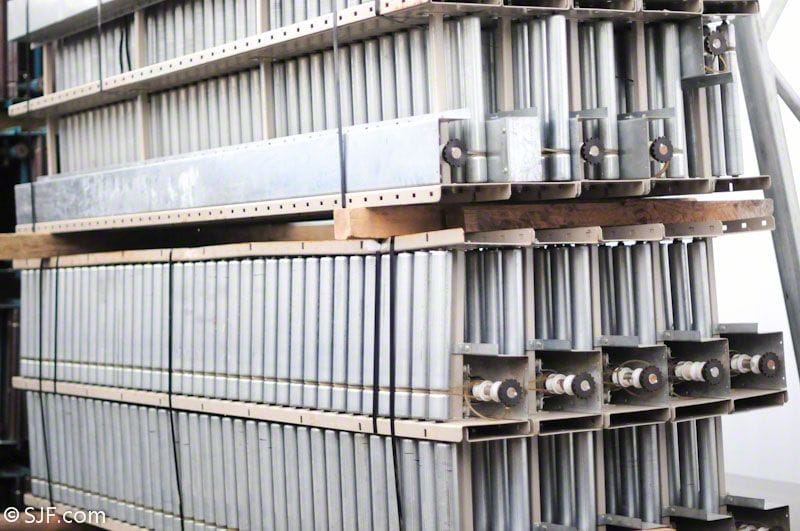

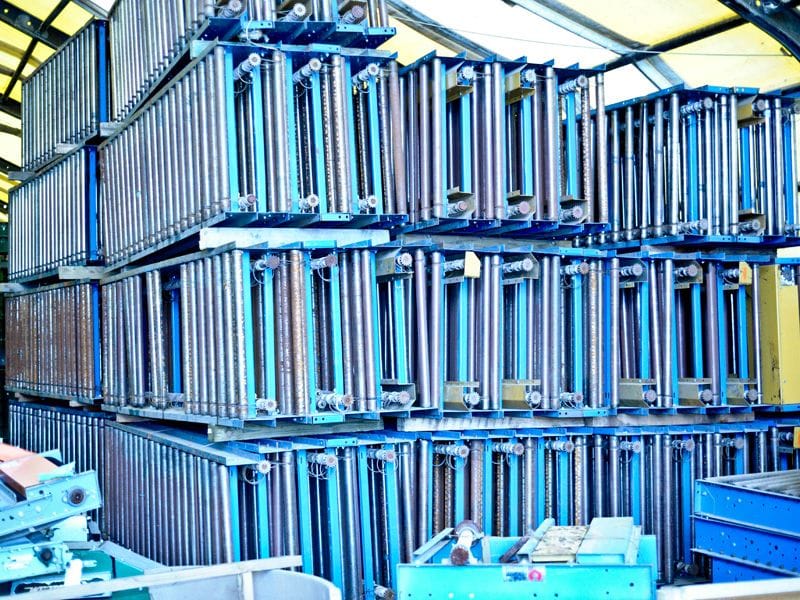

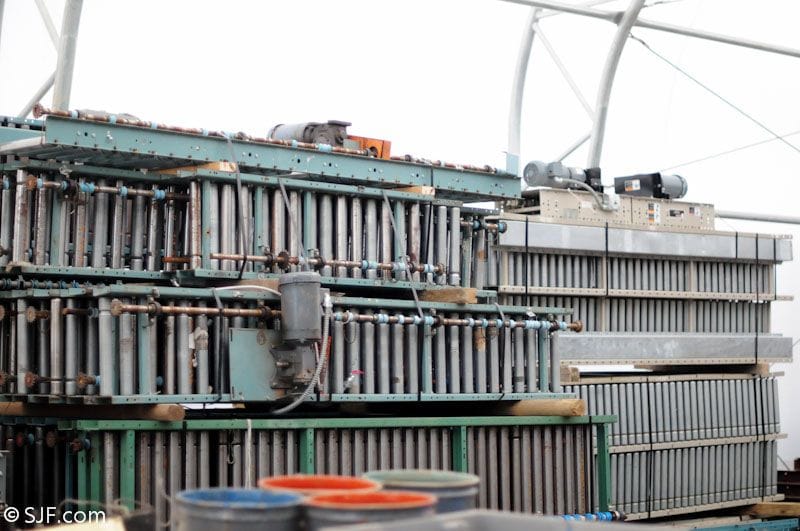

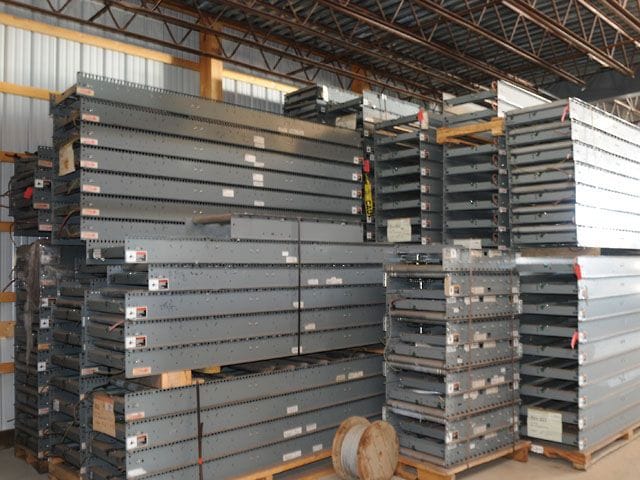

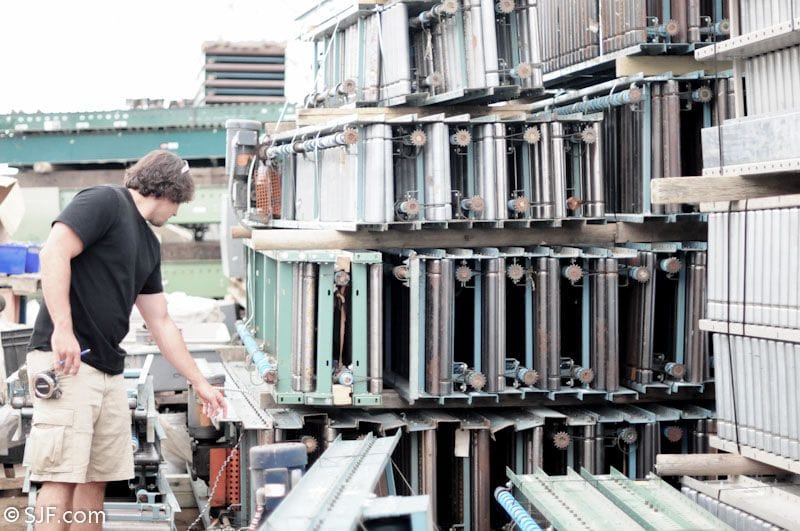

This line shaft conveyor shown here was purchased in good running condition and is currently in-stock and stored indoors at SJF's main warehousing facility in Winsted, Minnesota ( MN ). We also have several used line shaft conveyor curves, drives, rollers and accessories available but not listed here. Component items we usually have in stock include: adjustable conveyor stands, used lineshaft conveyor controls, used conveyor drives, guardrails, universal belt transfers, feeders, lift gates, gearbox in-feeds, conveyor junctions and more.

Conveyor Dimensions Guide

Conveyor Measurements
Description New Cost As Low As
35" W Lineshaft (32" useable) - 1.9" Rollers on 6" Centers - 6.5" H Frame $82/ft $33/ft
27" Lineshaft $70/ft $25/ft
24" Lineshaft $65/ft $25/ft
Metzger 33" OAW lineshaft $70/ft $30/ft
Rapistan 1256 Lineshaft Intermediates, 24.25" OAW $65/ft $25/ft
Automated Line Shaft, 24" W, 3" center, 1.9" dia. roller, 7" high frame call $25.00/ft
Ermanco Line Shaft Inter, 18½" W, 3" center, 1.9" dia. roller, 4.5" high Frame, 10'L call $25.00/ft
Ermanco, 18.5" W, Lineshaft, 24" zones, 1.9-3' Centers, 4.5' high frame, 2 sensor rollers, and 3 air balls transfer rails per 7'-6'bed section call $35.00/ft
Ermanco, 18.5" W, Photo eye Lineshaft acc, 27" zones, 1.9-3" Centers, 4.5' high frame, missing photo eyes call $20.00/ft
Ermanco, 24.5" W, Lineshaft acc. drive. 27" zones, 1.9"-3" Centers, 4.5" high frame call $750.00 ea
Ermanco, 24.5" W, Lineshaft acc. Inter, 27" zones, 1.9"-3" Centers, 4.5" high frame call $25.00/ft
Ermanco - 30.5"oaw, Lineshaft, 1.9" dia rollers on 4" centers, 4.5" high frame $80.00/ft $25.00/ft
Hytrol Line Shaft Inter, 22" W, 3" center, 1.9" dia. roller, 4.5" high Frame, 10'L call $25.00/ft
Hytrol, 18" W, Lineshaft drive, 1.9"-3" Centers, 4.5" high frame, 6'-6" L call $25.00 ea
Interlake, 21" W, line shaft, 1.9"-3" Centers, 3.5" high frame call $28.00/ft
Interlake, 21" W, Lineshaft, 1.9"-3' Centers, 7" high frame call $28.00/ft
Description New Cost As Low As
Lineshaft drive, 25.5" W call $650.00 ea
Lineshaft drives, 18.5" W, 1.9"-4" Centers, 4.5" high frame call $650.00 ea
Lineshaft, 18.5" W, 1.9"-4" Centers, 4.5" high frame call $25.00/ft
Lineshaft, 25.5" W, 1.9"-3" Centers, 4" high frame call $25.00/ft
Lineshaft, 25" W, 1.9"-3" Centers, 5.5" high frame call $25.00/ft
Mathews, 24" W, 30" zones, 1.9"-3" Centers, 5" high frame, has sensor rollers but no other carrier rollers, 3 dead rollers per zone call $30.00/ft
Rapistan Line Shaft Inter, 18¼" W, 3" center, 1.9" dia roller, 4.5" high Frame, 10'-0 L call $25.00/ft
Rapistan Line Shaft Inter, 18½" W, 3" center, 1.9" dia. roller, 7" high Frame, 10'-0 L $67.00/ft $20.00/ft
Rapistan Line Shaft Inter, 18½" W, 3" center, 1.9" dia. roller, 7.5" high Frame, 10'-0 L $67.00/ft $20.00/ft
Rapistan Line Shaft Inter, 24½" W, 3" Center, 1.9" dia. roller, 7" high Frame, 10'-0 L call $25.00/ft
Rapistan Line Shaft, 18¼" W, Inter, 3" Centers, 1.9" dia. roller, 4.5" high Frame, 10'-0 L call $25.00/ft
Rapistan, 24.25" W, Lineshaft drive, 1.9"-3" Centers, pop out rollers, 48" L call $25.00 ea
Rapistan, 24.25" W, Lineshaft drive, 1.9"-3" Centers, pop out rollers, 7" high frame, 10'L call $25.00 ea
Rapistan, 24.25" W, Lineshaft UBT, Left & Right Hand Units $1350 ea $450.00 ea
Description New Cost As Low As
Versa Ferguson, 27" W, Lineshaft, 1.9"-3" Centers, 3.5" high frame call $25.00/ft
Versa Ferguson, 27" W, Lineshaft, 1.9"-3" Centers, 6.5" high frame call $25.00/ft
Versa Ferguson, 29" W, Lineshaft, 1.9"-4" Centers, 6.5" high frame $80.60/ft $15.00/ft
Versa Line Shaft Inter, 29" W, 3" center, 1.9" dia. roller, 6.5" high frame, 10'-0 L call $25.00/ft
Versa Line Shaft Inter, 6" center, 1.9" dia. roller, 6.5" high Frame, 10'L call $20.00/ft
Versa, 24" W, Lineshaft drive, 1.9"-3" Centers, 12.5" high frame, 48" L call $25.00 ea
Versa, 24" W, Lineshaft UBT, 1.9"-3" c /c, 12.5" high frame, 48" long $1350 ea $300.00 ea
Versa, 24" W, Lineshaft, 1.9"-3" Centers, 6.5" high frame call $25.00/ft
Versa, 25" W, Lineshaft, 1.9"-3" Centers, 6.5" high frame call $25.00/ft

Please Call [800.598.5532] or for pricing, availability and lead times on this and other Power Conveyors. If you don't see what you're looking for, our conveyor solutions specialists can often find it.

Pricing & availability subject to change without notice.
