Horizontal Carousels

Horizontal Carousel Infographic

Horizontal Carousel - Tutorial Guide

Horizontal carousels consist of a frame and a rotating carriage of bins which contains several shelves (usually 4 or 5). Products can be stored directly on shelves themselves or in totes stored on the shelves. Horizontal Carousels can save up to 60% floor space, increased productivity up to 50% and increase picking accuracy up to 90% over traditional static storage systems. view entire article

Diamond Phoenix Horizontal Carousels

NEW INVENTORY!

Horizontal carousels are ideal for high speed automated picking, parts delivery and sortation applications. Carousels position heavy duty bins to an operator automatically, saving space, reducing labor cost, speeding throughput, improving accuracy and inventory control.

Diamond Phoenix Horizontal Carousel

Size: 18" deep x 36" wide x 73" high
Number of Bins: 33
Number of Shelves: 6
Capacity of Shelves: 150 lbs./shelf
Sale priced at $12,000.00
  • Please call 1.800.598.5532 or for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

    Pricing & availability subject to change without notice.

    Featured Horizontal Carousels

    The horizontal carousels shown above were professionally dismantled and removed from a facility in Utah where they had been used without problems for several years. Our professional crews verified counts, crated and loaded them onto trucks and they recently arrived back at our Winsted, MN facility

    Horizontal Carousel Systems - Features & Benefits

    • High Throughput - Picking rates up to 500 lines per operator, per hour.
    • Save space - Items are stored compactly in a confined space. Horizontal carousels reduce the storage footprint by eliminating order picking aisles used by conventional shelving storage systems. Storage and retrieval takes place at a centrally located position optimizing pick efficiency.
    • Increased Accuracy - Utilizing paperless picking with the use of light trees, sort bars and software controlled picking virtually eliminates picking errors.
    • Reduced Man Hours - Items are brought to the operator eliminating walk and search time. The software automatically queues orders, batches picks and positions the carousels for picking, reducing idle and dwell time.
    • Cube Utilization - Companies have been able to reclaim up to 75% of floor space when implementing a horizontal carousel system. Shelves are easily adjustable. Carousels may be tiered with or without mezzanines.
    • Payback (ROI) - Companies often recover their investment in less than one year through improved productivity, reduced floor space, reduced error rates, reduced shrinkage, and greater uptime.
    • With the addition of SurePik warehouse management software, several orders can be combined for batch picking reducing the number of drive cycles.

    White Horizontal Carousel - Model#WG24LK

    • Top Drive - Single Motor
    • 29'3" Overall Length
    • 5'8" Overall Width
    • 103" Overall Height
    • 24 Bins
    • Bin Size: 24.5"W x 20"D x 96"H
    • 7-9 shelves/bin
    • SJF Part No: UH2412W2407S096 & UH2420W2407S096 & UH2420W2409S096
    • Sale Price: $10,550 ea. $6,750 ea.

    White Horizontal Carousel - Model#SG26IE

    • Top Drive - Single Motor
    • 36'2" Overall Length
    • 26 Bins
    • Bin Size: 28"W x 96"H x 16"D
    • 7-8 shelves/bin
    • SJF Part No: UH2816W2607S096 & UH2816W2608S096
    • Sale Price: $10,950 ea. $6,950 ea.

    Remstar Horizontal Carousel- Model# CD1024.5-30-11/24/3/12A

    • Top Drive, Dual Drive
    • 150" Overall Height
    • 30 Bins Total
    • Bin Size: 24"W x 24"D x 132"H
    • 7 shelves/bin
    • Needs Controls
    • SJF Part No: UHB0242413203007150T2DENNMC
    • Sale Price: $13,995 ea. $10,995 ea.

    Please call 1.800.598.5532 or for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

    Pricing & availability subject to change without notice.

    Surepik Carousel Software and Solutions - the final piece to the puzzle...

    SJF & SurePik solutions can provide any and all add-ons for carousel systems. Light Trees, Controllers, Software, Bar Code Scanners and much more. Learn More »

    Used Diamond Phoenix Carousel System

    This Diamond Phoenix system has two individual pods. Each pod consists of two horizontal carousels stacked one on top of the other.

    34-bin Carousels

    • Bin size: 36"W x 22"D x 97"H – 6 shelves/bin
    • Each system has two light trees/carousel and two stations per level
    • Total height of system (to top of upper drive): 245"
    • Total width of system: 168"
    • System also has "Woods" AC inverters next to pod controllers
    • Two 1.5 HP drives each, CCS-III controllers and foot pads

    Please call 1.800.598.5532 or for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

    Pricing & availability subject to change without notice.

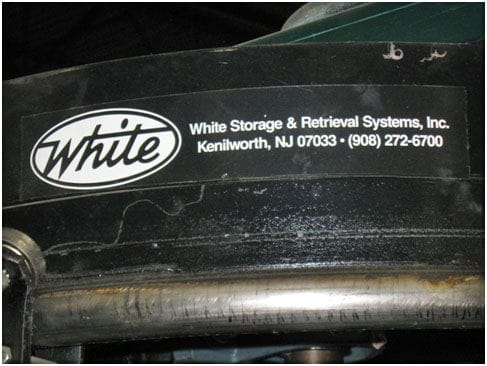

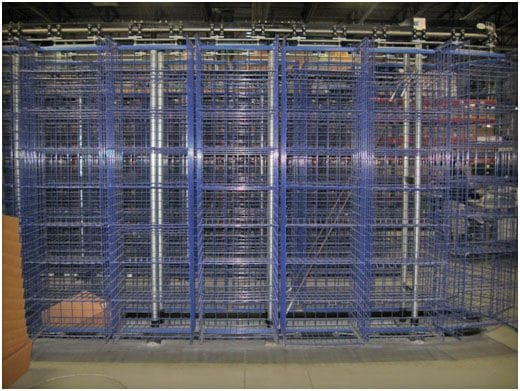

    Used White Horizontal Carousels

    All used white horizontal carousels listed here unless noted otherwise are priced used as and were all in working order prior to removal. When you purchase horizontal carousels from SJF you get all the components needed, professionally crated and packed to quickly reassemble into a fully working carousel. Customized carousel controls and software including inventory management and or ASRS programming are available for any carousel SJF offers for sale at an additional fee. Call or email SJF for details on all of the options available.

    Quantity (ea) Description As Low As
    1 White Used Horizontal Carousel
    22 bins total, Bin Size: 26"W x 20"D x 9'H
    2 shelves/bin
    Single Drive
    Model# PH-22-D7
    SJF Part No: UH2620W2202S09U
    $7,500
    1 White Used Horizontal Carousel
    24 Bins Total, Bin Size: 24"W x 12"D x 96"H
    7 shelves/bin
    114" Overall Height
    Single Drive (1HP, DC)
    Foot Control
    SJF Part No: UHB0241209602407114T1DEYFWU
    $7,750
    2 White Used Horizontal Carousel, Model#HP45436HP & HP36BH
    30 bins per system, Bin Size: 22"W x 18"D x 10'H
    23 shelves/bin
    Dual Drive
    SJF Part No: UH2218W3023D10U
    $11,995
    1 White Used Horizontal Carousel
    34 bins total, Bin Size: 24"W x 22.5"D x 85"H
    End Drives
    Total Length: 25'6"
    SJF Part No: UH2422W3408D07U
    $12,995
    2 White Used Horizontal Carousel
    39 Bins Total, Bin Size: 19"W x 19"D
    11 shelves/bin
    Dual Drive
    SJF Part No: UH1919W3911D012
    $13,995
    2 White Used Horizontal Carousel, Model# YG40-DG
    40 bins, 3 shelves/bin

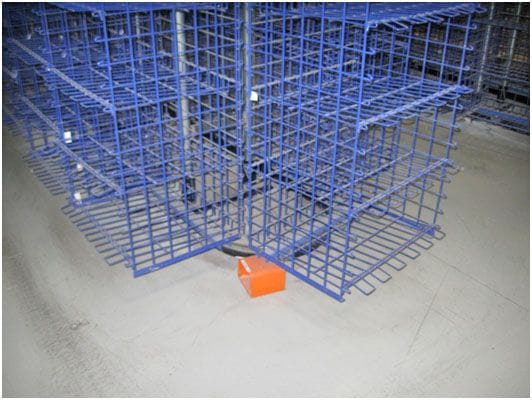

    Bin Size: 19"W x 18"D x 6'H (solid back & wire sides)
    Total Length: 35'
    1 HP, Dual Drive

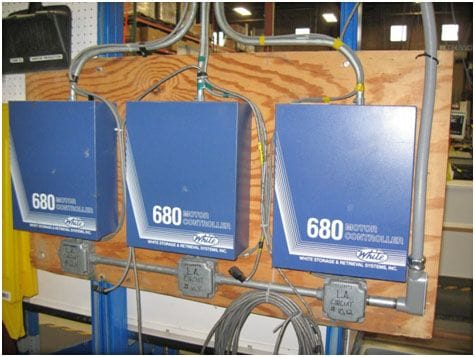

    680 Control Box
    SJF Part No: UH1918W4003D06U
    $14,275

    Please call 1.800.598.5532 or for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

    Pricing & availability subject to change without notice.

    Horizontal Carousel Pod

    This is a very nice used Horizontal Carousel Pod consisting of 3 White horizontal carousels, light trees, bins, scissor lift & surrounding wire cage.

    This carousel system has recently sold. SJF stocks a wide array of similar horizontal carousels that can be configured into 2 & 3 pod systems like the one seen here. Contact us for details & pricing on carousel pod systems and the latest in software packages we offer to run them. Call 800-598-5532 or email support@sjf.com

    • 1 ea. - 40 bin used carousel
    • Dual bottom drive
    • Overall Height: 12'H Shelf Size: 18" x 22" x 6"H - 24 shelves/bin
    • Sell Price: This item has sold
    • 1 ea. - 38 bin used carousel
    • Bottom Drive Overall Height: 12'H Shelf Size: 18" x 22" x 12"H - 12 shelves/bin
    • Sell Price: This item has sold
    • 1 ea. - 40 bin used carousel
    • Bottom Drive
    • Overall Height: 12'
    • Shelf Size: 18" x 22" x 12"H - 12 shelves/bin
    • Sell Price: This item has sold
    • Also Available with this pod:
    • Scissor Lift - SOLD
    • Light Bar - $1,200 ea.
    • 2 ea. - Light Trees - $1,200 ea.
    • 880 ea. Plastic Bins, 16" x 25" x 5"H - SOLD
    • 936 ea. Plastic Bins, 16" x 25" x 9.5"H - $4.00 ea.
    • Wire Fencing - 115 ft. - Call for Price

    Please call 1.800.598.5532 or for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

    Pricing & availability subject to change without notice.

    Buschman, Remstar, Raymond &
    Saratoga Carousels

    These used carousels are very clean and have been stored indoors since being professionally dismantled by our trained crews. SJF can also provide customized carousel controls or ASRS programming for any used carousel. Call SJF sales (800-598-5532) for details about these carousels.

    Quantity Description As Low As
    2 Raymond Horizontal Carousel - Model# C10301710246464B
    19 bins per system
    Bin Size: 31"W x 24"D x 10'H (folding wire back/sides)
    4 shelves/bin
    Total Length: 30'
    single drive, 1 HP / 1 PH / 115 Volts / 6Hz DC Adjustable Speed
    Needs Controls
    SJF Part No: UH3124R1905S10U
    $7,400
    11 Buschman Used Horizontal Carousel
    24 Bins Total, Bin Size: 36"W x 22"DM
    6 shelves/bin
    Single or Dual Drive
    SJF Part No: UH3622B2406S07U & UH3622B3406D08U & UH3622B3606D08U
    $7,750
    1 Saratoga Horizontal Carousel - Model#GKH-36-6/22/3.5-7
    36 bins total, Bin Size: 24.25"W x 22"D x 6'1"H (wire backs & sides)
    Total Length: 44'
    single drive, 1 HP / 208 Volts, DC Adjustable Speed Motor
    Electrical Box & Foot Pedal Controls
    SJF Part No: UH2422A3603S06U
    $13,995
    1 Saratoga Used Horizontal Carousel
    44 Bins Total, Bin Size: 22"W x 22"D
    4 shelves/bin
    Single Drive
    SJF Part No: UH2222A4404S06U
    $14,995

    Please call 1.800.598.5532 or for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

    Pricing & availability subject to change without notice.

    Diamond Phoenix Carousels

    SJF regularly comes across Used Diamond Phoenix Horizontal Carousels for sale. If you have an existing Diamond Phoenix, we can also help outfit it with our custom control suite - SurePik. Contact an SJF representative today to discuss Diamond Phoenix horizontal carousels.

    Please call 1.800.598.5532 or for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

    Pricing & availability subject to change without notice.
