Ridg-U-Rak Pallet Racks

Ridg-U-Rak Pallet Rack Infographic

Ridg-U-Rak Pallet Rack Guide

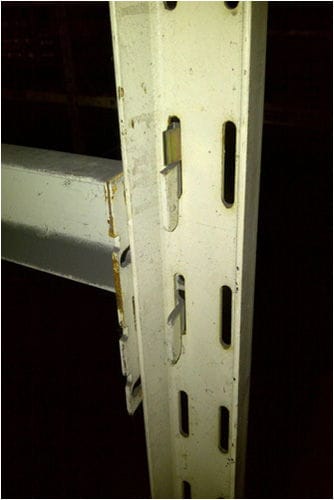

Ridg-U-Rak pallet racking is a fairly common type of pallet racking that is still being manufactured today. Known for it's distinctive clip design, Ridg-u-Rak also features a pinch-pin clip to lock beams in place. view entire article

Featured Ridg-U-Rak Uprights & Beams

Special Limited Time Offer on Select Sizes!

(special low prices valid on large quantity purchases only)

Qty Description Price Each
(as low as)

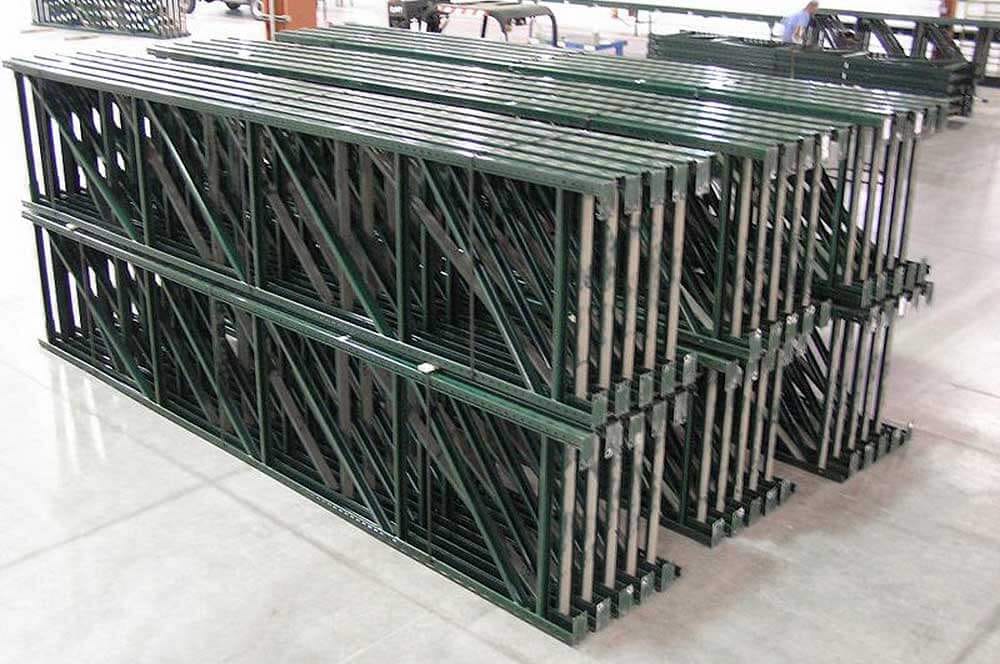

Uprights
700 Ridg-u-Rak Uprights, 42"D x 288"H (2.5 x 3" column) Just Added $98 $80.00
100 Ridg-u-Rak Uprights - 36"D x 108"H, 1x3 post $35
60 Ridg-u-Rak Uprights - 36"D x 216"H, 1x3 post $90
28 Ridg-u-Rak Uprights - 30"D x 168"H, 2.25x3 post $35
665 Ridg-u-Rak Uprights - 42"D x 192"H, 2.25x3 post $80
Beams
4530 Ridg-u-Rak Beams - 96"L x 3.5" H Just Added $18 $16.25
264 Ridg-u-Rak Beams - 96"L x 4" H $18
3880 Ridg-u-Rak Beams - 96-3/8"L x 4.5" H $18.50
140 Ridg-u-Rak Beams - 102"L x 4.5" H $18

Pricing & availability subject to change without notice.

Build a Pallet Rack System for your Garage, Warehouse or Distribution Center

Our Pallet Rack Quote Tool has been designed to help you generate a parts list for a basic static pallet rack system. Give it a test drive today!

Structural Ridg-U-Rak - Heavy Duty

VERY Heavy Duty Structural Ridg-u-Rak Pallet Racking - now Available

300 ea. - 36" x 18'H Uprights (34K+ capacity) - As Low As: $85 ea.
3000 ea. - 96" x 4500# capacity beams - As Low As: $15/ea.
Pallet Supports - As Low As: $2/ea

Pricing & availability subject to change without notice.

Used Ridg-U-Rak Pallet Rack Uprights

Also available, but not listed are pallet supports, back to wall/back to row ties, wire decking, post protectors and many additional pallet rack accessories.

If you have any questions about this Ridg-U-Rak storage rack or any of the warehouse racks you see on this site, please call an SJF representative for more details: 1.800.598.5532

Pallet Rack Upright Dimensions Guide

Upright Measurements
Description (depth X height, post size) Retail New Used Used As Low As
28 X 180, 2 X 3 $120.23 $43.00
32 X 228, 2.25 X 3 $160.47 $56.50
36 X 144, 3 X 2.25 $85.45 $48.00
36 X 192, 2.5X 3 $130.24 $52.00
42 X 144, 2.25 X 3 $110.47 $52.00
42 X 144, 3 X 3 $120.24 $52.00
42 X 180, 2.5X 3 $155.31 $58.00
42 x 192, 2 X 3 $135.14 $60.00
42 X 192, 2.25 X 3 $135.41 $60.00
42 X 216, 2x 3 $190.78 $65.00
42 X 240, 2.25 X 3 $215.33 $90.00

Pricing & availability subject to change without notice.

Used Ridg-U-Rak Pallet Rack Beams

If you have any questions about this Ridg-U-Rak storage rack or any of the warehouse racks you see on this site, please call an SJF representative for more details: 1.800.598.5532

Pallet Rack Beam Dimensions Guide

Beam Measurements
Ridg-u-Rak Beams, < 96" Long
Description (length X height, step height) Retail New Used As Low As
Box Beams
84.25 X 4.5 $20.43 $10.00
84.75 X 4.5 $21.51 $10.50
84.5x 5.25 $21.95 $10.50
90.25 X 4 $23.83 $12.00
90.25 X 3.25 $23.62 $12.00
90.5 X 3.25 $24.92 $13.00
90.5 X 4 $24.31 $11.50
Open Channel Beams
89.25 X 3.25 $22.32 $13.00
90.25 X 3.25 $22.95 $13.50
90.5 X 3.50 $23.20 $14.00
Description (length X height, step height) Retail New Used As Low As
90.375 X 3.50 $23.00 $14.00
Step Beams
48.375 X 3, 1.625 $18.91 $9.00
54.375 X 3, 1.625 $19.57 $9.50
82 X 4, 1.625 $22.93 $11.00
82.375 X 4.25, 1.625 $20.51 $11.00
82.25 X 4.25, 1.625 $21.39 $11.00
90.5 X 4, 1.625 $24.01 $13.00
94.25 X 3.5, 1.625 $25.13 $12.00
94.375 X 3.5, 1.625 $26.61 $12.00
95.5 X 6, 1.625 $27.94 $13.00
Ridg-u-Rak Beams, 96" Long - 120" Long
Description (length X height, step height) Retail New Used As Low As
Angle Face Beams
106.375 X 3.5, 1.625 $29.75 $18.50
Box Beams
96 X 6 $42.88 $16.50
106.375 X 4.75 $34.50 $17.50
108.25 X 4 $38.58 $17.50
108.375 X 4 $38.81 $18.00
110.25 X 2.25 $39.12 $18.00
112.375 X 2.25 $39.95 $18.50
120.375 X 4 $41.78 $19.50
120.5 X 4 $42.03 $19.50
Step Beams
96 X 3, 1.625 $28.08 $13.00
96 X 3.75, 1.625 $28.27 $13.00
96 X 6, 1.625 $41.88 $15.00
96.25 X 3, 1.625 $29.03 $14.00
Description (length X height, step height) Retail New Used As Low As
96.25 X 3.25, 1.625 $29.12 $14.50
96.25 X 3.5, 1.625 $30.25 $15.00
96.25 X 4, 1.625 $31.61 $15.00
96.25 X 4.75, 1.625 $31.71 $15.00
96.25 X 5.5, 1.625 $35.88 $15.00
96.25 X 6, 1.625 $42.03 $15.50
96.375 X 3, 1.625 $25.94 $15.50
96.375 X 4, 1.625 $26.11 $15.50
96.375 X 4.25, 1.625 $26.20 $15.50
96.375 X 6, 1.625 $26.75 $17.00
96.5 X 3, 1.625 $30.54 $16.00
96.5 X 3.5, 1.625 $30.84 $16.00
96.5 X 4.5, 1.625 $31.97 $16.00
Description (length X height, step height) Retail New Used As Low As
96.5 X 5.5, 1.625 $34.37 $16.25
98.375 X 4, 1.625 $35.02 $16.00
98.5 X 4, 1.625 $35.41 $15.00
108 X 4.25, 1.625 $38.95 $16.00
108.375 X 6, 1.625 $39.82 $16.00
114.375 X 5.5, 1.625 $39.63 $17.00
120.25 X 4, 1.625 $41.33 $17.00
120.25 X 4.5, 1.625 $41.87 $17.50
120.25 X 5, 1.625 $43.99 $19.00
120.25 X 5.5, 1.625 $43.37 $19.00
Ridg-u-Rak Beams, > 120" Long
Description (length X height, step height) Retail New Used As Low As
Box Beams
132.25 X 5 $42.21 $20.00
132.25 X 5.5 $42.85 $21.00
Step Beams
132.25 X 5, 1.625 $42.78 $19.00
132.5 X 5, 1.625 $43.90 $19.00
144 X 4, 1.625 $45.37 $20.00
144 X 4.25, 1.625 $45.48 $20.00
144 X 4.5, 1.625 $46.00 $21.00
144 X 4.75, 1.625 $47.31 $21.00
144 X 5, 1.625 $49.66 $22.00
144 X 6, 1.625 $60.87 $22.50
Description (length X height, step height) Retail New Used As Low As
144.25 X 4, 1.625 $45.23 $23.00
144.5x 4.75, 1.625 $46.86 $23.00
144.25 X 5.5, 1.625 $48.31 $24.00
144.375 X 3.5, 1.625 $47.46 $24.00
144.375 X 4, 1.625 $47.71 $24.00
144.375 X 6, 1.625 $47.58 $24.00
144.5 X 4, 1.625 $48.87 $24.50
144.5 X 4.5, 1.625 $49.98 $24.50
144.5 X 4.75, 1.625 $49.02 $24.50
144.5 X 5.5, 1.625 $49.55 $24.50

Pricing & availability subject to change without notice.
