Structural Pallet Racks

View photos, sizing and pricing for used Structural Pallet Racks. Click the following links for more information on teardrop pallet racks, new warehouse racking systems, used pallet racking systems and other material handling equipment & services.

Having trouble identifying your pallet rack? View our helpful pallet rack guide.

Common terms associated with warehouse racking:

  • Industrial shelving
  • Warehouse shelving
  • Warehouse racking systems
  • Warehouse racks
  • Lumber racks
  • Warehouse mezzanines
  • Pallet racking
  • Warehouse pallet shelving rack
  • Storage racking
  • Warehouse storage racks
  • Industrial pallet racks
  • Industrial racking systems
  • Pallet rack systems
  • Pallet racking storage
  • Pallet racking uprights and beams

SJF carries a wide variety of new & used warehouse storage racks brands and styles to suit your individual home or warehouse storage needs, as well as many accessories and components to add on to or customize the individual needs of each storage area. Teardrop pallet racks are one of the most popular types of storage racking due to its interchangeability with different brands and customizability with different dimensions and sizes.

Warehouse racking begins with these parts:

  • Upright frames

    ?

  • Beams

    ?

Once the warehouse rack is constructed, there are many different accessories or components that can customize the system to fit the individual needs of the storage area. Here are a few examples of different accessories that can be added:

  • Wire decking to add a mesh layer over the beams so that items don't fall through and to add strength
  • Post protectors to protect the base of the upright frames from forklifts
  • Wall ties, back-to-back ties and anchors to attach the racking to the wall or another rack for additional stability
  • Safety panels and straps to add to the sides or back of the racking system so that stored items don't fall off
  • Spacers and pallet supports to add to the stability and integrity of the system

Pallet Racking Brand Names

Here is a sampling of different racking brands that SJF carries. If you are in need of a different brand, please call our sales professionals, as we often carry other brands or can find them for you.

  • Amerak
  • Blackstone
  • Bulldog
  • Burtman
  • Clymer
  • Dexion
  • EMI
  • Excel
  • Frazier
  • Frick-Gallagher
  • Hannibal
  • Hiline
  • Husky Rack and Wire
  • Interlake Mecalux
    (New & Old Style)
  • Inca
  • J-Hook
  • Jarke
  • Keneco
  • Keystone
  • Kingway
  • Konstant
  • Lodi
  • Mecalux
  • Meco
  • Meco-Omaha

Frequently Asked Questions about Structural Pallet Rack

Roll-form pallet rack is usually associated with selective pallet rack storage. It is the preferred storage rack for light (500 lbs. per shelf) to heavy (7,500 lbs. per shelf) pallet storage.

Structural pallet rack is made from hot rolled c-channel structural steel. While it can be used to store lighter loads, it's structural design can also be best utilized when storing heavier loads of 5,000 lbs. per shelf and more. It uses additional hardware (nuts and bolts) for assembly. It is inherently heavier, stronger and can hold heavier loads than roll-form rack. It is more impact resistant than roll-form rack.

While roll-form rack is the rack of choice for selective pallet storage, structural rack is often the preferred solution for higher density applications like pushback, drive-in and pallet flow applications. Structural racks are thicker and the heavier construction offers improved resistance to impact from forklifts entering and exiting the racks.

Structural racks typically cost more per pallet position to buy, ship and install than roll-form racks. Structural racks may offer more rust resistance and hold capacity than roll-form racks.

You would consider using roll-form pallet racks:

  • When you are storing light to heavy weight loads, usually 7,500 lbs. or less per shelf.
  • When transportation costs are a concern. Because of its lighter weight, more roll form rack can be put on a flat bed when transporting racks to the job site for installation.
  • When easy handling and quick assembly without the need for hardware is desired.

Due to its heavier weight, structural rack costs more to ship than roll-form. Roll-form rack is less costly to ship because it’s lighter than structural racks with the same dimensions.

Due to its heavier weight and nut and bolt connections, structural racking can take longer and cost more to handle and install. Tools are required to attach and tighten the nuts & bolts used to connect the shelf beams to the upright frames. Roll form racks traditionally install faster due to its bolt-less connection design, which allows for a fast and easy connection of the beams to the uprights.

You would consider using structural cantilever rack instead of roll-form rack:

  • Due to its impact resistance and it's ability to hold heavier weight. Structural racks are often the preferred pallet storage system choice of warehouse managers for push-back, drive-in and drive-thru racks.
  • When bigger capacities are needed for heavier loads.
  • When items need to be washed down. Structural rack is easier to get access to all surface areas.
  • When storing heavy items like tool & die equipment and steel coils.

Due to its ability to hold heavier weights and its nut and bolt connections, structural racks are the preferred choice for most warehouse managers for pushback racks, drive-thru and drive-in racks. Roll-form racks traditionally install faster due to its bolt-less connection design, however roll-form racks are more susceptible to forklift impact damage.

When selecting a pallet rack storage system, it is best to understand the full range of pallet storage systems available, while paying attention to each of the features and benefits. Call or email one of our solutions specialists for help - they are familiar with all the different solutions available and will be happy to review your project and provide you the most efficient and cost-effective solutions available.


Structural Uprights and C-Channel Beams CLICK TO CHAT GET A QUOTE

Structural Uprights for Pallet Rack
Structural Pallet Rack Uprights   Structural Pallet Rack Beams   Structural Step Beams

Structural Uprights and C-Channel Beams

Structural Pallet Rack Uprights

  • 44"D x 24'3"H
  • 3" face with 1-5/8" column size
  • 200 available
  • Priced as low as $105.00 each

Structural C-Channel Step Beams

  • 96"L x 4"H
  • 1,200 available
  • Priced as low as $19.50 each

Pallet Supports

  • 4,800 available
  • Priced as low as $1.75 each

Please call (320) 485-4974 (direct sales line), (800) 598-5532 (toll-free) or Email Us for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

Pricing & availability subject to change without notice.

Structural Uprights/Roll-Form Beams CLICK TO CHAT GET A QUOTE

Rollform Beams Structural Uprights Pallet Rack
Structural/Rollform Pallet Rack Uprights   Roll-Form & Structural Pallet Rack   Structural Roll-Form Pallet Rack   Structural Roll-Form Pallet Rack

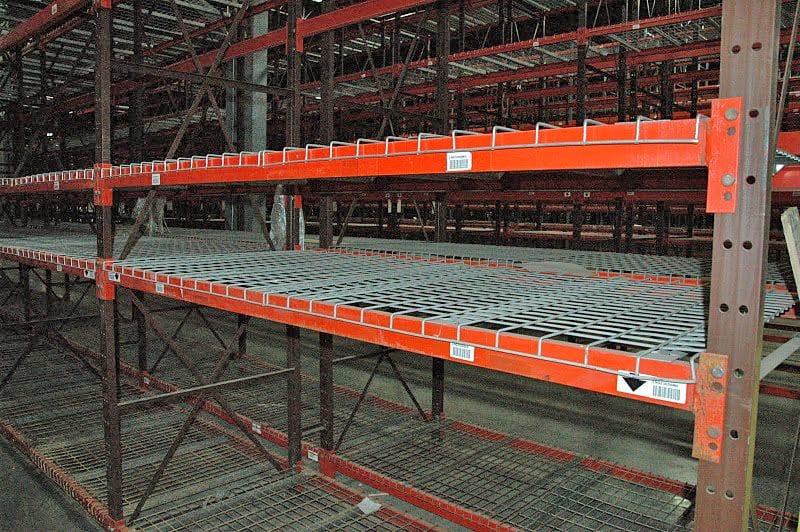

Structural Uprights with Roll-Form Beams in Excellent Condition

Structural Pallet Rack Channel Uprights

  • 44"D x 18'H
  • 1-1/2" x 3" column size
  • 112 available
  • Priced as low as $104.50 each

Roll-form Pallet Rack Beams with 1-5/8" Step

  • 96"L x 4.5"H
  • 1-1/2" x 3" column size
  • 808 available
  • Priced as low as $19.50 each

Please call (320) 485-4974 (direct sales line), (800) 598-5532 (toll-free) or Email Us for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

Pricing & availability subject to change without notice.

Structural Pallet Rack For Sale - Minnesota CLICK TO CHAT GET A QUOTE

Frazier Structural Pallet Rack
Frazier Structural Pallet Rack   Frazier Structural Pallet Rack   Frazier Structural Pallet Rack
Part Size Price Each
As Low As
Konstant Cantilever Leg Upright Frame – 44"D x 168"H, 1.5" x 3" column – 500+ available $58.00
Frazier Uprights – 44"D x 372"H, 1" x 3" column $145.00
Ridg-u-Rak Structural Uprights – 36"D x 224"H, 1" x 3" column $88.50
Konstant Structural Uprights – 54"D x 204"H, 1.5" x 3" column $85.00
Konstant Structural Uprights – 42"D x 204"H $79.95
Frazier C-Channel Structural Beams – 95.5"L x 2"H – 1,000+ available $12.85
Frazier C-Channel Structural Beams – 95.625"L x 2"H – 1,000+ available $12.85
Frazier C-Channel Structural Beams – 95.625"L x 3"H – 1,000+ available $15.00
Konstant C-Channel Structural Beams – 96"L x 3"H – 1,000+ available $14.00
Frazier C-Channel Structural Beams – 101.625"L x 3"H – 1,000+ available $14.00
Frazier C-Channel Structural Beams punched for pallet supports – 101.625"L x 3"H $15.00

Please call (320) 485-4974 (direct sales line), (800) 598-5532 (toll-free) or Email Us for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

Pricing & availability subject to change without notice.

Used Structural Pallet Rack Uprights CLICK TO CHAT GET A QUOTE

The above rack is available cleaned and repainted for an additional fee.

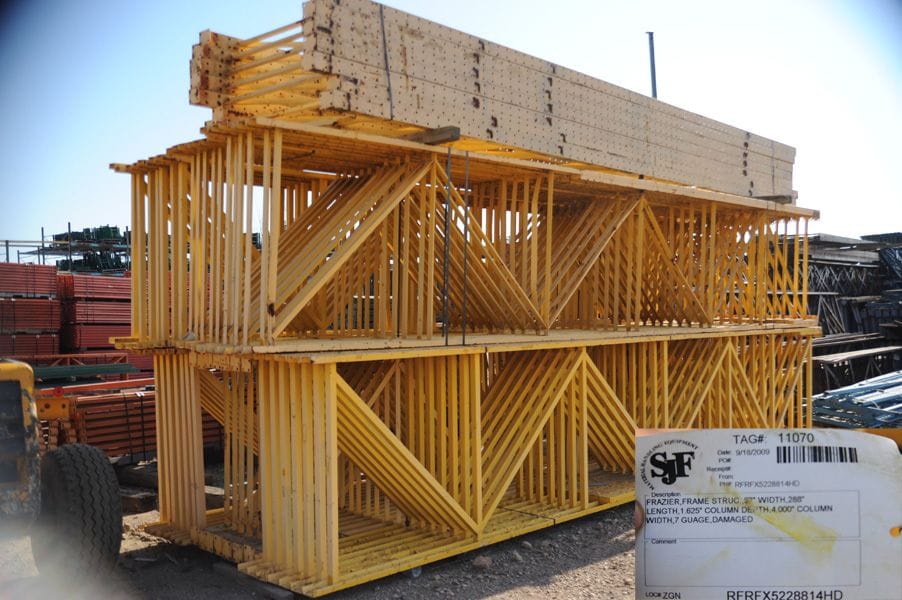

Used Structural Upright Frames   Used Structural Uprights

Pallet Rack Upright Frame Dimensions Guide

Upright Dimensions

Also available, but not listed are pallet supports, back to wall/back to row ties, wire decking, post protectors and many additional pallet rack accessories.


Structural Pallet Rack Uprights, less than 120" high

Part Size Retail New Price Each
As Low As
Frazier Racking Upright – 42"D x 72"H, 1.625" x 3 post $86.87 $38.00
Frazier Racking Upright – 44"D x 96"H, 1.625" x 3" post $88.87 $39.00

Structural Pallet Rack Uprights, 120" high - 200" high

Part Size Retail New Price Each
As Low As
Frazier Racking Upright – 42"D x 120"H, 1.625" x 3" post $90.12 $45.00
Konstant Pallet Rack Upright– 42"D x 192"H, 1.625" x 3" post $155.87 $75.50
Frazier Racking Upright – 44"H x 120"D, 1.625" x 4" post $100.50 $42.00

Structural Pallet Rack Uprights, more than 200" high

Part Size Retail New Price Each
As Low As
Frazier Racking Upright – 36"D x 240"H, 1.625" x 3" post $190.56 $90.25
Frazier Racking Upright – 36"D x 264"H, 1.625" x 3" post $200.48 $90.50
Frazier Racking Upright – 36"D x 276"H, 1.625" x 3" post $210.79 $90.00
Frazier Racking Upright – 36"D x 288"H, 1.625" x 3" post $228.67 $95.00
Frazier Racking Upright – 36"D x 300"H, 1.625" x 3" post $250.42 $100.00
Frazier Racking Upright – 36"D x 540"H, 1.625" x 4" post $335.76 $177.50
Frazier Racking Upright – 42"D x 240"H, 1.625" x 3" post $220.71 $95.00
Frazier Racking Upright – 48"D x 270"H, 1.625" x 3" post $230.48 $95.50
Frazier Racking Upright – 42"D x 288"H, 1.625" x 3" post $220.30 $95.00
Ridg-u-Rak Upright– 36"D x 224"H, 1.375" x 3" post $178.30 $92.00

Please call (320) 485-4974 (direct sales line), (800) 598-5532 (toll-free) or Email Us for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

Pricing & availability subject to change without notice.

Used Structural Pallet Rack Beams CLICK TO CHAT GET A QUOTE

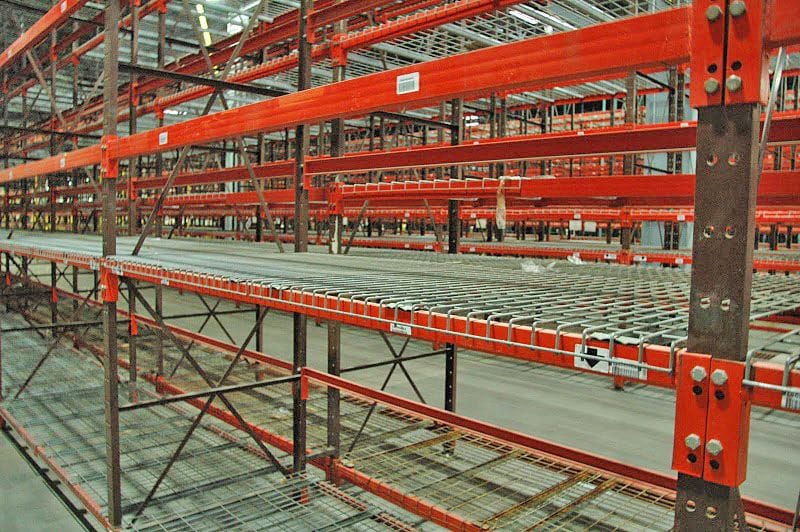

Structural Beam/Upright Connection
Structural Beam/Upright Rear View   Bundle of Structural Beams

Pallet Rack Beam Dimensions Guide

Beam Dimensions

Structural pallet rack beams, less than 96" long

Part Size Retail New Price Each
As Low As
Frazier Structural C-Channel Beams - 95.625"L x 4"H, Adjustable Clip $30.48 $14.00
Frazier Structural C-Channel Beams - 91.75"L x 3"H $29.40 $13.50
Frazier Structural C-Channel Beams - 92.625"L x 3"H $29.75 $13.50
Frazier Structural C-Channel Beams - 95.5"L x 3"H $30.72 $14.00
Frazier Structural C-Channel Beams - 95.625"L x 3"H $30.14 $14.00
Frazier Structural C-Channel Beams - 95.625"L x 5"H $30.97 $14.30
Frazier Structural Step Beams - 94.625"L x 5.25"H, 1.625" step $31.42 $14.50
Frazier Structural Step Beams - 95.625"L x 4.5"H, 1.625" step $31.98 $14.50
Frazier Structural Step Beams - 95.75"L x 6"H, 1.625" step $32.74 $15.00

Structural pallet rack beams, 96" to 126" long

Part Size Retail New Price Each
As Low As
Frazier Structural C-Channel Beams - 96"L x 6"H, Adjustable Clip $39.89 $20.50
Frazier Structural C-Channel Beams - 96"L x 3"H $29.15 $14.50
Frazier Structural C-Channel Beams - 96"L x 4"H $30.57 $18.50
Frazier Structural C-Channel Beams - 108.625"L x 4"H $39.98 $18.50
Frazier Structural C-Channel Beams - 111.625"L x 4"H $40.87 $19.50
Frazier Structural C-Channel Beams - 112"L x 3"H $37.50 $16.50
Frazier Structural Step Beams -99"L x 4"H $31.74 $14.00
Frazier Structural Step Beams -106.5"L x 4.5"H, 1.625" step $35.02 $18.50
Frazier Structural Step Beams -109"L x 3.5"H, 1.625" step $35.54 $17.00
Frazier Structural Step Beams -126"L x 6"H $40.00 $20.00

Please call (320) 485-4974 (direct sales line), (800) 598-5532 (toll-free) or Email Us for pricing, availability and lead times. If you don't see what you're looking for, our sales specialists can often find it.

Pricing & availability subject to change without notice.

Looking for "Pallet Rack Near Me?"

Pallet Racking Systems Shipping Locations - We Ship NATIONWIDE


Pallet Racks Stocking Locations

SJF Material Handling Inc. ships warehouse racking systems from multiple locations around the country:

  • California
  • Georgia
  • Illinois
  • Massachusetts
  • Michigan
  • Minnesota
  • North Carolina
  • Pennsylvania
  • South Carolina
  • Texas
  • Utah
  • West Virginia
  • Ontario, Canada
